Easy Basic

Skis 100%

PRODUCT LINE_ Standard

PRODUCT DESCRIPTION_

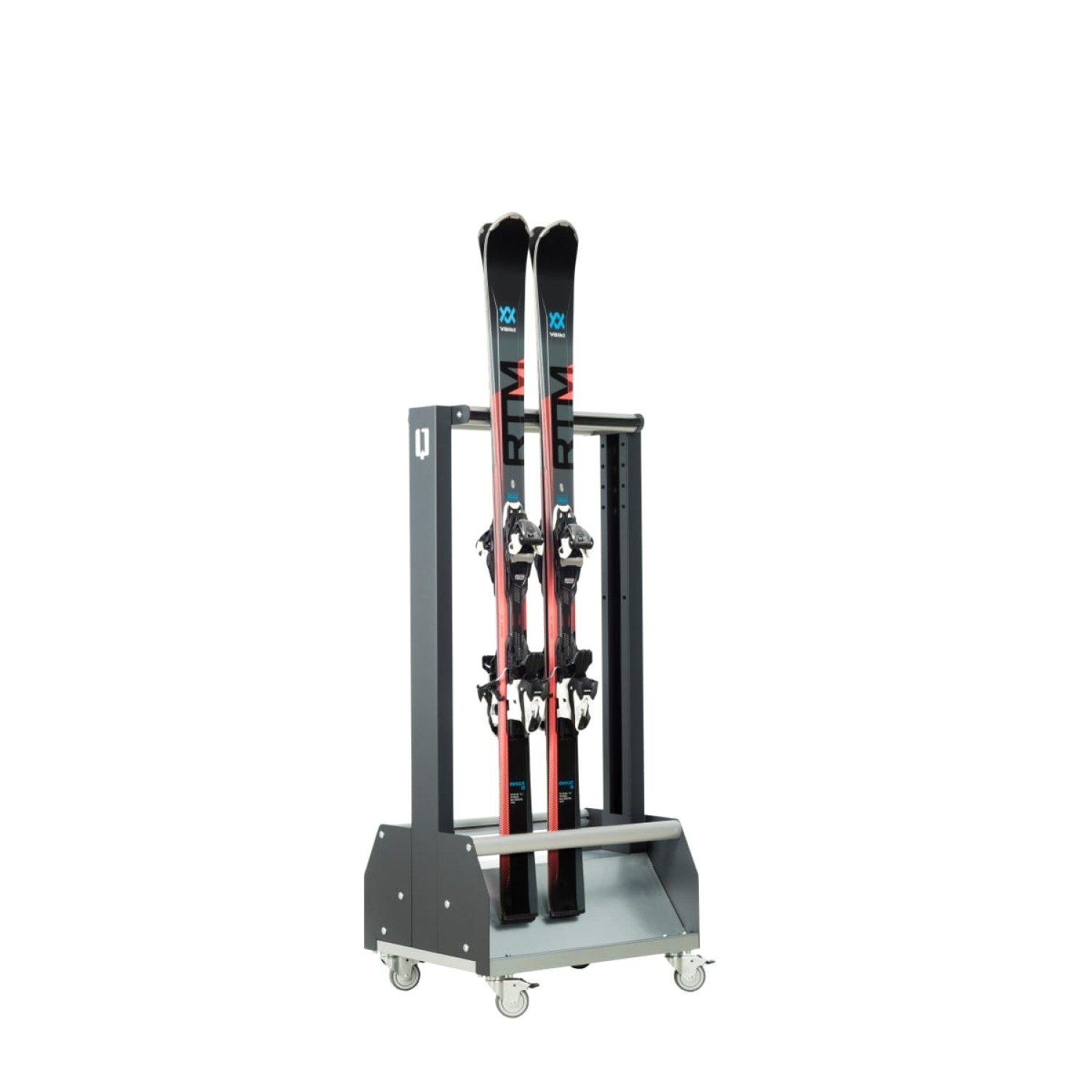

Easy Basic is a primary solution for storing skis and snowboards in a very attractive price. The model is equipped with swivel casters that enable smooth and easy movement. The construction includes aluminum posts with special anti-slip rubber strips ensuring a very strong (the 3-points system) grip of gear. Thanks to height-adjustable crossbars it is possible to store snowboards and skis of different lengths and types in a safe and stable way – including ski touring, cross-country and freestyle skis. Exceptionally easy placement and removal of equipment is yet another important feature of this rack. The shape of the hood prevents water from residing and drains it off.

Product Datasheet QBL Catalogue Ski Rental & Service'24

SPECIFICATION_

LENGTH MM CAPACITY pairs of skis
600 8
1000 16
1250 20
1500 24
close
DOUBLE PROTECTION

DOUBLE PROTECTION

DURABILITY & PROTECTION AGAINST CORROSION

The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
close
ADJUSTMENT SYSTEMS

ADJUSTMENT SYSTEMS

OPTIMAL USE OF AVAILABLE SPACE

QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
close
GRIP OF SKIS_ 3-POINT SYSTEM

GRIP OF SKIS_ 3-POINT SYSTEM

VERSATILE & EXTREMELY SECURE HOLDING SYSTEM

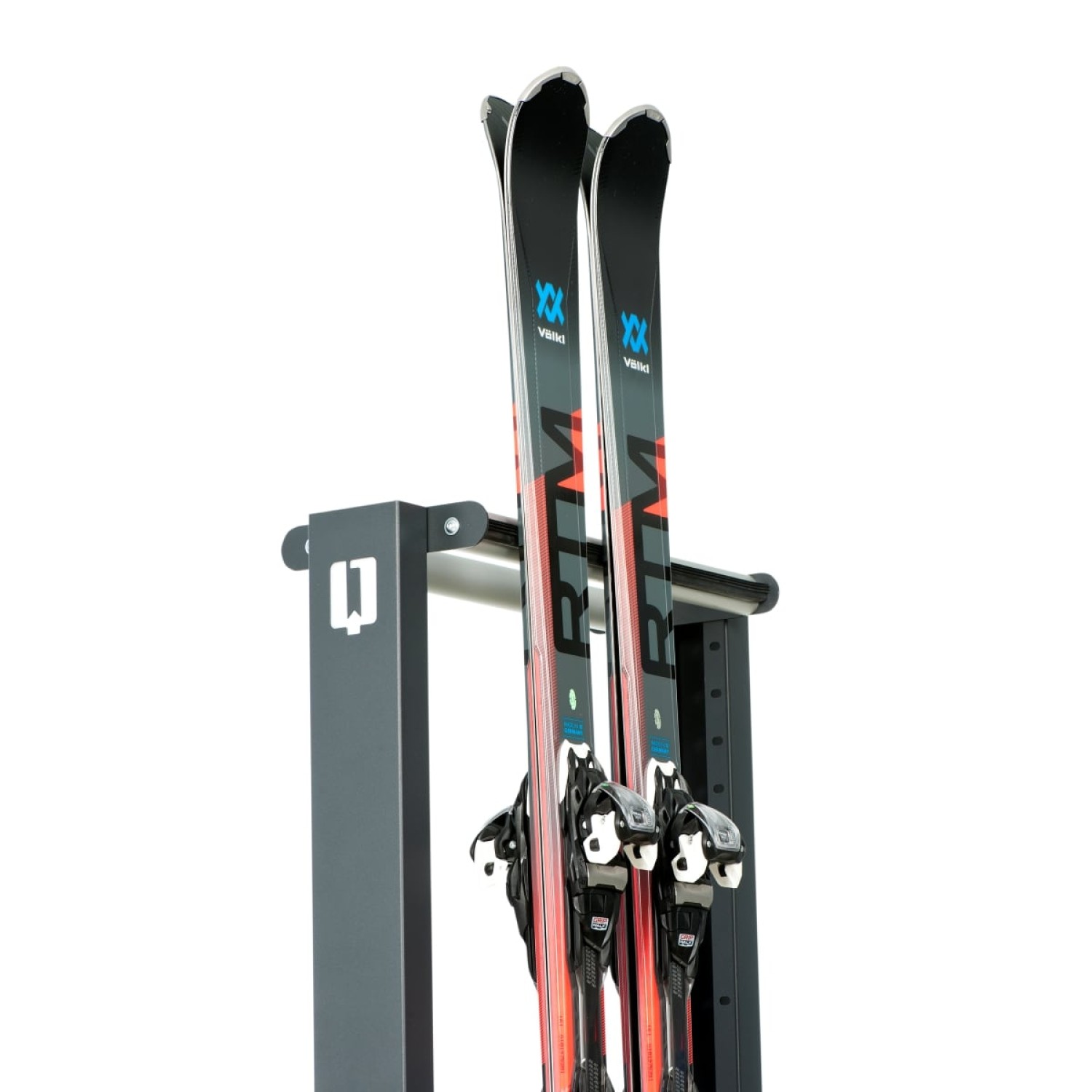

The holding technique is based on the universal three-point system of contact between the surface of the rack and the surface of the skis. The key to the maximum functionality of the system is the optimal proportions of individual structural elements and the angles of their location in relation to each other. Not only do they provide an exceptionally strong hold on the equipment, allowing to use all types and widths of skis (including cross-country), but they are also safe to store without causing unwanted changes to the construction of skis over long periods of use. Designed specifically for the three-point holding system, the aluminium upper crossbars (with their special rubber seal) securely hold skis in the rack – even when they are put away carelessly in a hurry.
close
RUNNING SYSTEM

RUNNING SYSTEM

SPACE SAVING, MOBILE & CONVENIENT

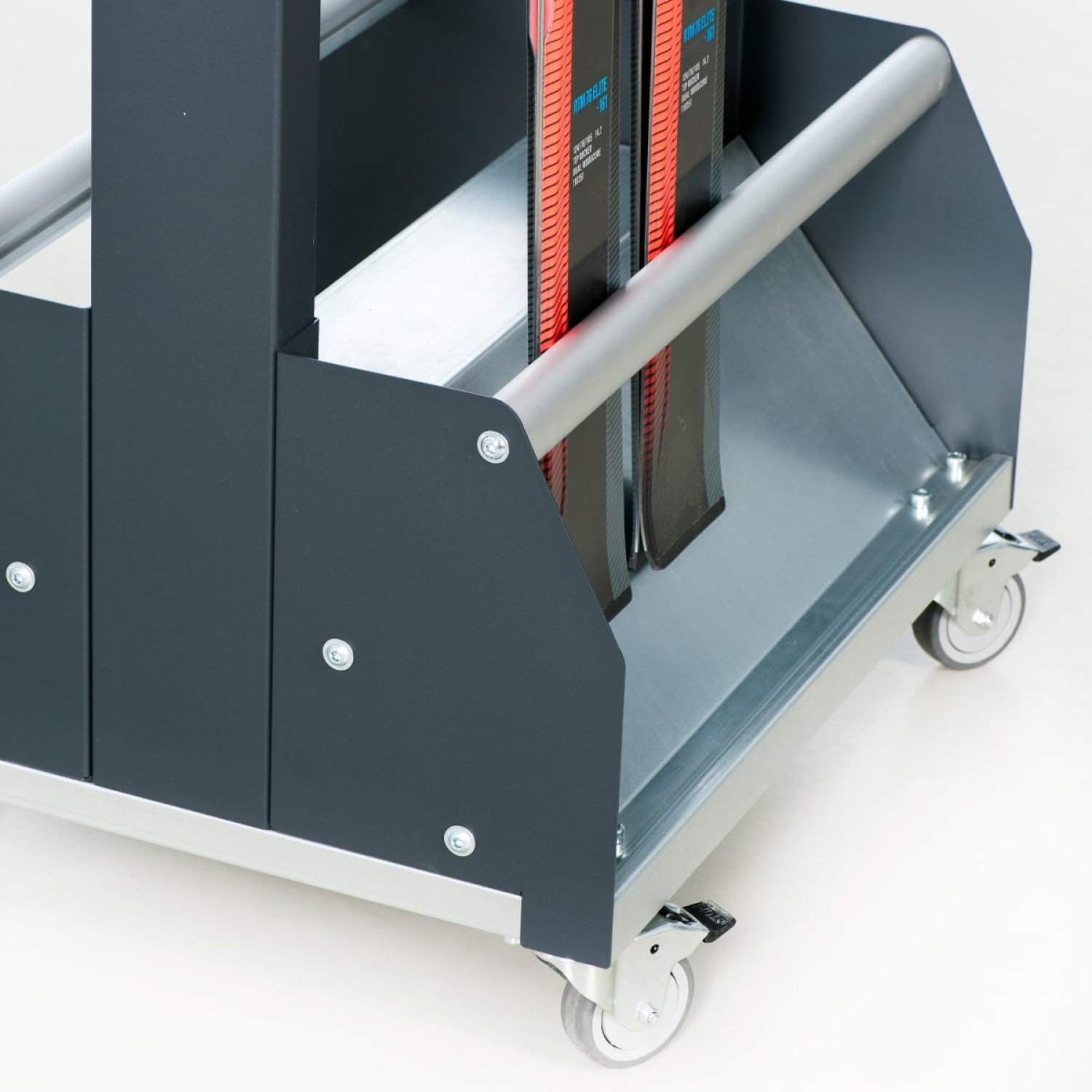

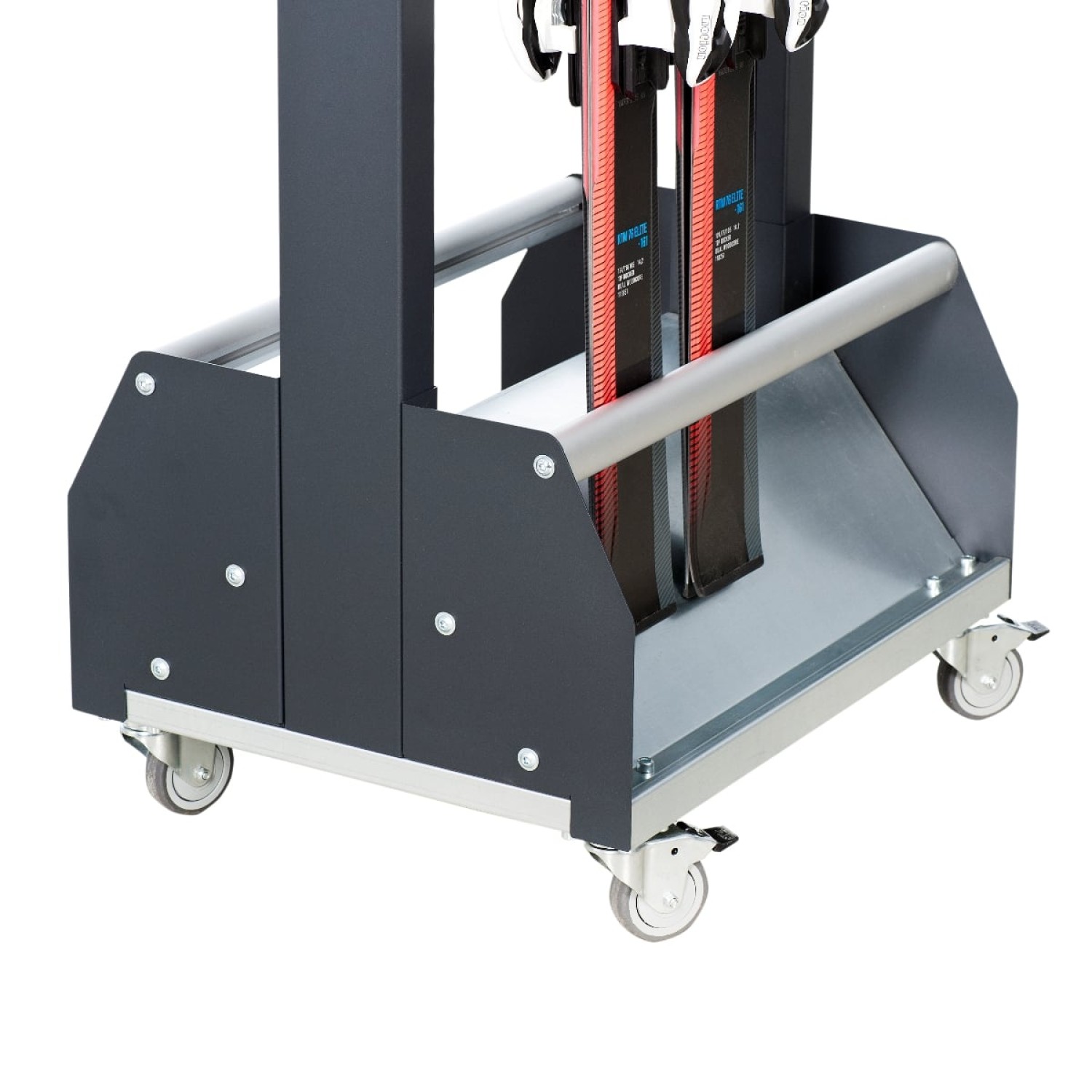

The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
close
WATER HOOD

WATER HOOD

WATER DRAINAGE & SUPPORT POINT FOR SKIS AND SNOWBOARDS

The water hood is made of galvanised steel or (optionally) stainless steel with a thickness of 1.5mm, thus maintaining its anti-corrosion properties. It is located on a frame designed with a slight angle of inclination so that dripping water from skis or snowboards does not accumulate but flows away through the hood channel outside the rack and its rail system. The thoughtful design of the water hood not only drains water, but is also a component of the three-point holding system for skis and snowboards.
