GRIP OF SKIS_ THE CLIQ HOLDER
INNOVATIVE & SUPEREFFICIENT SKI HOLDING SYSTEM
The CliQ holder has been designed to maximise the storage functionality of the skis. Its uniqueness lies in its effective combination of several key features: secure hold on equipment, exceptional ease of use, the possibility of storing different types, lengths and widths of skis and impressive presentation. The innovative design and the patented operating mechanism of the holder allow to insert your skis intuitively and quickly – with just one hand. Slight pressing of the rubbercoated spring plate closes the arms, which stiffen the skis in the holder extremely firmly. The skis are stored at an angle of 22°, which gives them a truly attractive display. There are two models of the CliQ Holder for differents ski categories_ CliQ and CliQ XL.
GRIP OF SKIS_ 3-POINT SYSTEM
VERSATILE & EXTREMELY SECURE HOLDING SYSTEM
The holding technique is based on the universal three-point system of contact between the surface of the rack and the surface of the skis. The key to the maximum functionality of the system is the optimal proportions of individual structural elements and the angles of their location in relation to each other. Not only do they provide an exceptionally strong hold on the equipment, allowing to use all types and widths of skis (including cross-country), but they are also safe to store without causing unwanted changes to the construction of skis over long periods of use. Designed specifically for the three-point holding system, the aluminium upper crossbars (with their special rubber seal) securely hold skis in the rack – even when they are put away carelessly in a hurry.
GRIP OF SKIS_ FORK SYSTEM
BY FAR THE MOST SPACEEFFICIENT HOLDING SYSTEM
The fork-based system is the most capacious way to store skis. The forks are made of 3mm-thick steel and four steel tubes to hang the skis on. The surface of the forks is covered with a rubber coat, which has anti-slip properties and effectively protects them from scratches. The forks are fixed at any distance on the steel levels – allowing maximum use of the available space on the rack. The structure has been designed in such a way that, thanks to the gentle slope of the steel tubes, the risk of equipment falling out during dynamic movement or collision of the racks is reduced. Each fork can safely store two to three pairs of senior skis.
GRIP OF SNB_ HORIZONTAL SYSTEM
TRADITIONAL & UNIVERSAL WAY OF HOLDING SNOWBOARDS
The traditional horizontal storage of snowboards is simple and universal in use and allows the storage of boards of various sizes – with both classic and rental bindings. The structure consists of two columns with holes along their entire height, used for attaching pairs of hooks on which snowboards are placed. The spacing between the hooks, thanks to the densely perforated columns, can be varied to optimise the use of available space. The upper surface of the hooks is covered with a rubber coat which has anti-slip properties and effectively protects them from scratches. One level of hooks can store one board with classic binding or two boards with rental bindings.
GRIP OF SNB_ 3-POINT SYSTEM
VERTICAL STORAGE WITH EXCEPTIONAL CAPACITY
The technique of holding snowboards in a vertical position is based on a three-point contact system of the rack with the edge of the snowboard, ensuring not only a firm hold of the equipment, but also the safety of its storage. The system consists of upper and lower aluminium crossbars with blue plastic elements attached to them as partitions between boards, and a galvanised steel hood. The hood has a channel that drains water away from the rack. The storage of snowboards in a vertical position brings extraordinary capacity and functionality. The mounting positions of the crossbars which hold the boards can be adjusted to suit the size of the equipment stored.
BIKE-HOLDING SYSTEM
A DEDICATED SOLUTION FOR BIKE STORAGE FACILITIES
The system of holding bikes in a vertical position has a complex steel structure that allows for the best spacesaving storage of bicycles. The lower structural elements, mounted on the rack frame, stabilise the rear wheel and prevent it from tilting horizontally. The upper handles, which are mounted on the crossbar, keep the wheels in a twisted position – for better stability, safety and for ergonomic storage. The exceptional capacity of the system is ensured by the fact that bicycles mounted on both sides of the rack can pass each other and by the diagonal position of the handle and the front wheel. The height of the crossbar and the positions of the upper and lower handles are adjusted to the dimensions of the stored bicycles.
POLE FORKS
CAPACITY & CONVENIENCE OF STORAGE
The storage of ski poles is based on forks made of 2 mm-thick galvanised sheet steel. Their design includes two long contoured arms between which the poles are inserted. The forks are mounted in steel levels with numerous holes spaced at two or four heights, allowing the forks location to be optimally matched to the length of the poles. Each standard-length fork holds up to four pairs of poles and is finished with a pair of plastic elements to keep the poles from falling out. The available colours of the plastic tips correspond to the length markings of the rental poles, helping you to store them in the right order.
ERGONOMIC SHELVES
MORE STORAGE POSSIBILITIES
Shelves are the main component of some products, but they are also a very useful optional accessory for virtually every model of the rack. Thanks to their design and dimensions, they are perfect for storing helmets, boots and many other accessories. Additionally, the solution of mounting them at a slight angle reduces the risk of equipment falling out when the racks are dynamically moved or collided. With the adjustment systems in the racking columns, the mounting heights of the shelves and the spacing between them can be adapted to the size of the equipment stored. The edges of the shelves have been rounded off to avoid stripping the equipment and to prevent hand injuries when taking boots from the rack. The shelves are made of highquality 1.5mm galvanised steel and are powder-coated.
POST WITH HOOKS
OPTIONAL STORAGE OF POLES
A post with profiled steel hooks is an optional racking component for hanging ski poles or other accessories. The post is mounted at any height of the columns, at the top of ski racks – most often in situations where skis should be stored together with their poles (e.g. in small ski depots or for private use).
STEEL BOX
SPACIOUS EXTRA STORAGE CAPACITY FOR BINDINGS OR OTHER ACCESSORIES
The capacious steel basket is made of 1mm-thick perforated sheet metal covered with powder coating. Thanks to additional zinc protection, it is resistant to moisture. The basket is located on a frame at the bottom of the rack and is intended for storing rental snowboard bindings, helmets and other types of gear. The interior structure is open, or – on request – divided, thus allowing different categories or sizes of equipment to be stored in separate compartments.

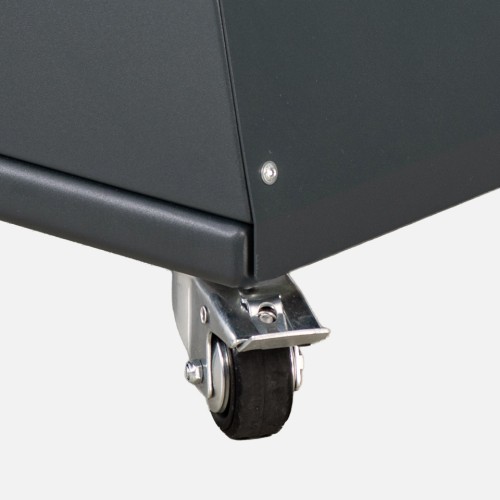

RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
FRAME
RIGID STRUCTURE, SAFETY OF USE
All racks and dryers in the rail system are equipped with a structural frame made of 3mm-thick steel, which is their load-bearing base and ensures the rigidity and stability of the entire system. The frame also acts as a running structure, ensuring safe and even guidance of products on the rails. The frame is double protected against corrosion – it is made of galvanised steel and covered with a layer of powder coating.
WATER HOOD
WATER DRAINAGE & SUPPORT POINT FOR SKIS AND SNOWBOARDS
The water hood is made of galvanised steel or (optionally) stainless steel with a thickness of 1.5mm, thus maintaining its anti-corrosion properties. It is located on a frame designed with a slight angle of inclination so that dripping water from skis or snowboards does not accumulate but flows away through the hood channel outside the rack and its rail system. The thoughtful design of the water hood not only drains water, but is also a component of the three-point holding system for skis and snowboards.

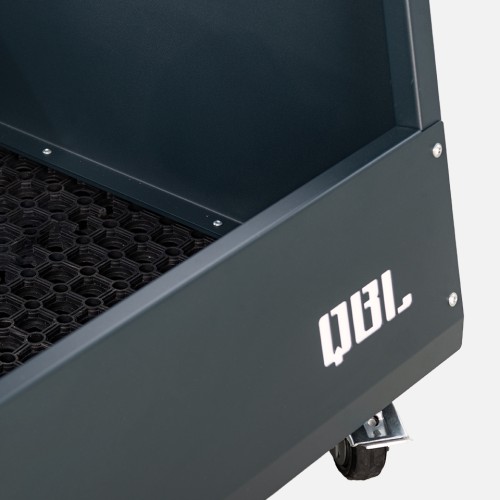

WATER TUB
WATER COLLECTION – THE OMFORT OF A DRY FLOOR
Racks and dryers with an open interior of the frame can be optionally equipped with a steel tub with a rubber mat, which serves for collecting water and dirt dripping from stored skis, snowboards or dried boots. The tub is made of galvanised steel, thus maintaining its resistance to corrosion. Adjusting the structure to the frames of the racks and dryers allows for easy removal and emptying. The use of the tub reduces moisture and dirt on the floor and in the area of the rail system.
Single Forks
FOR A VARIETY OF STORAGE NEEDS
The single fork is designed as an alternative universal solution for various storage needs, including snowshoes, snowboard bindings and ski poles. The simplicity of design gives the fork exceptional utility. The 22mm diameter of the steel tube that the equipment hung on has a widened end to prevent it from falling out. The fixing of the single fork in the holes corresponds to the fixing of the pole fork so that both elements can be used interchangeably on one construction level. Thanks to the compact form of the steel level, it may be attached to standard shelving models as additional storage solution.
