Top Plus
Skis 50% | Helmets & boots 50%
PRODUCT LINE_ UniQ
-
PRODUCT DESCRIPTION
-
Made in EU
24 Months Guarantee
SPECIFICATION
TECHNOLOGIES
FRONT BOARD DECORS
PRODUCT GALLERY
PRODUCT DESCRIPTION_

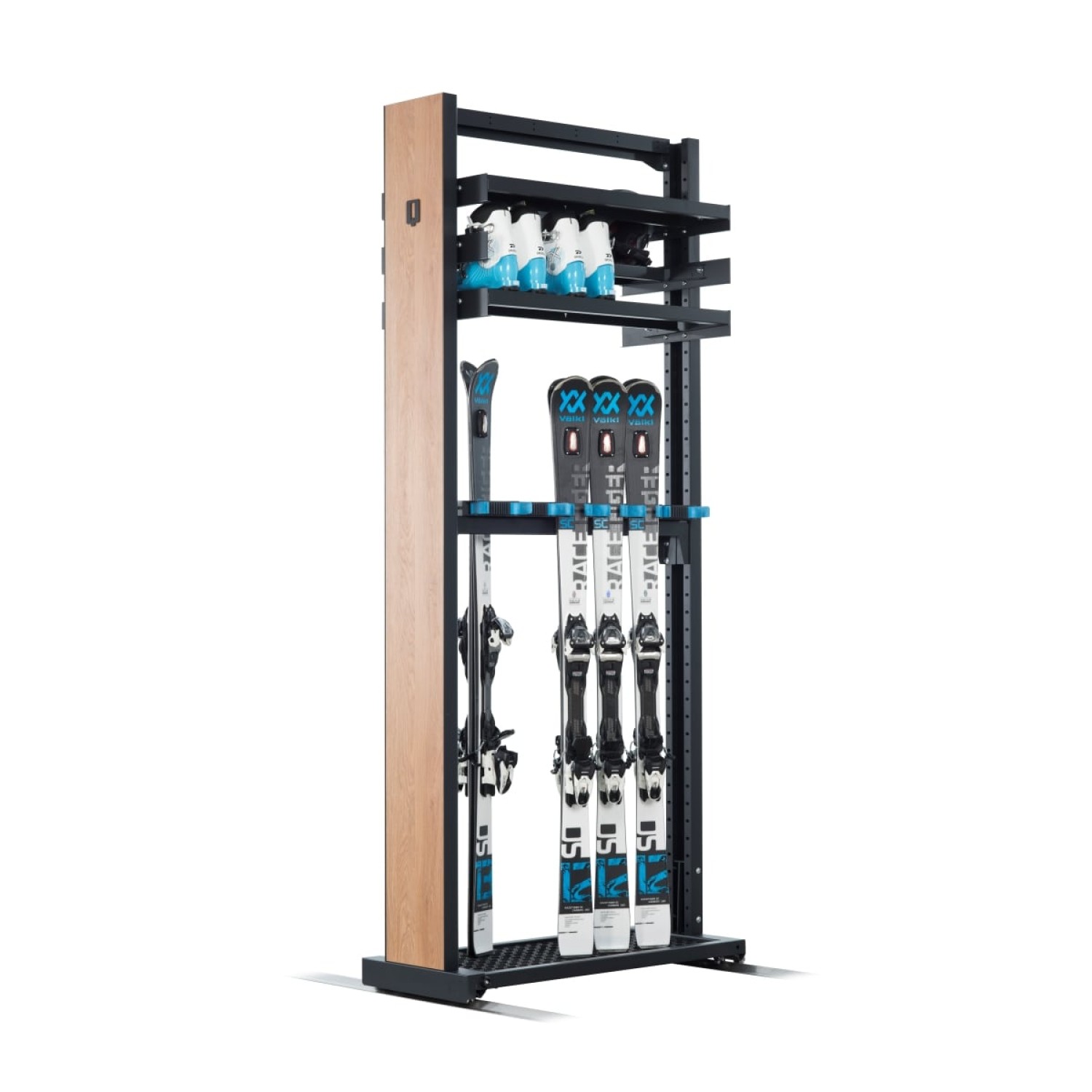

Holding skis in the Top Plus rack is based on an innovative grip system - the CliQ. It consists of three precisely designed parts, i.e. construction cover, clamping arms and pressure unit. The exceptional effectiveness of the holder has been confirmed by the ISPO Award Winner. The bottom of the rack include a water tub and a rubber mat. In the upper part of the rack, above the skis, there are three shelves for storing junior boots, helmets and other accessories. Height-adjustable crossbars in the lower part of the rack and shelves in the upper part allow storing winter gear of different types and sizes.
QBL Catalogue Ski Rental & Service'24
SPECIFICATION_
| LENGTH MM | CAPACITY* |
| 1500 | 19+18/15 |
| 1800 | 24+21/18 |
| 2000 | 27+24/21 |
| 2400 | 33+30/24 |
| 3000 | 42+39/30 |
| 4000 | 54+48/42 |
| HEIGHT 2420 mm | WIDTH 450 mm |
*Pairs of skis + helmets / pairs of junior boots
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
The main rack and dryer models are available in four different visual options which differ in the design of the front column. The Standard line is featured by a classic anthracite frontside, whilst the MiniPanel line by a modern white panel with a contrasting solid handle. The Panel line is distinguished by a wide, elegant board with an oval stainless-steel handle attached to it; the UniQ line offers unlimited possibilities for the selection of materials, which includes a delicate casing of a wide front column with a comfortable inner handle. The choice of different visual lines enables QBL products to be properly matched to the interior design and character of the facility in which they are used.
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
GRIP OF SKIS_ THE CLIQ HOLDER
INNOVATIVE & SUPEREFFICIENT SKI HOLDING SYSTEM

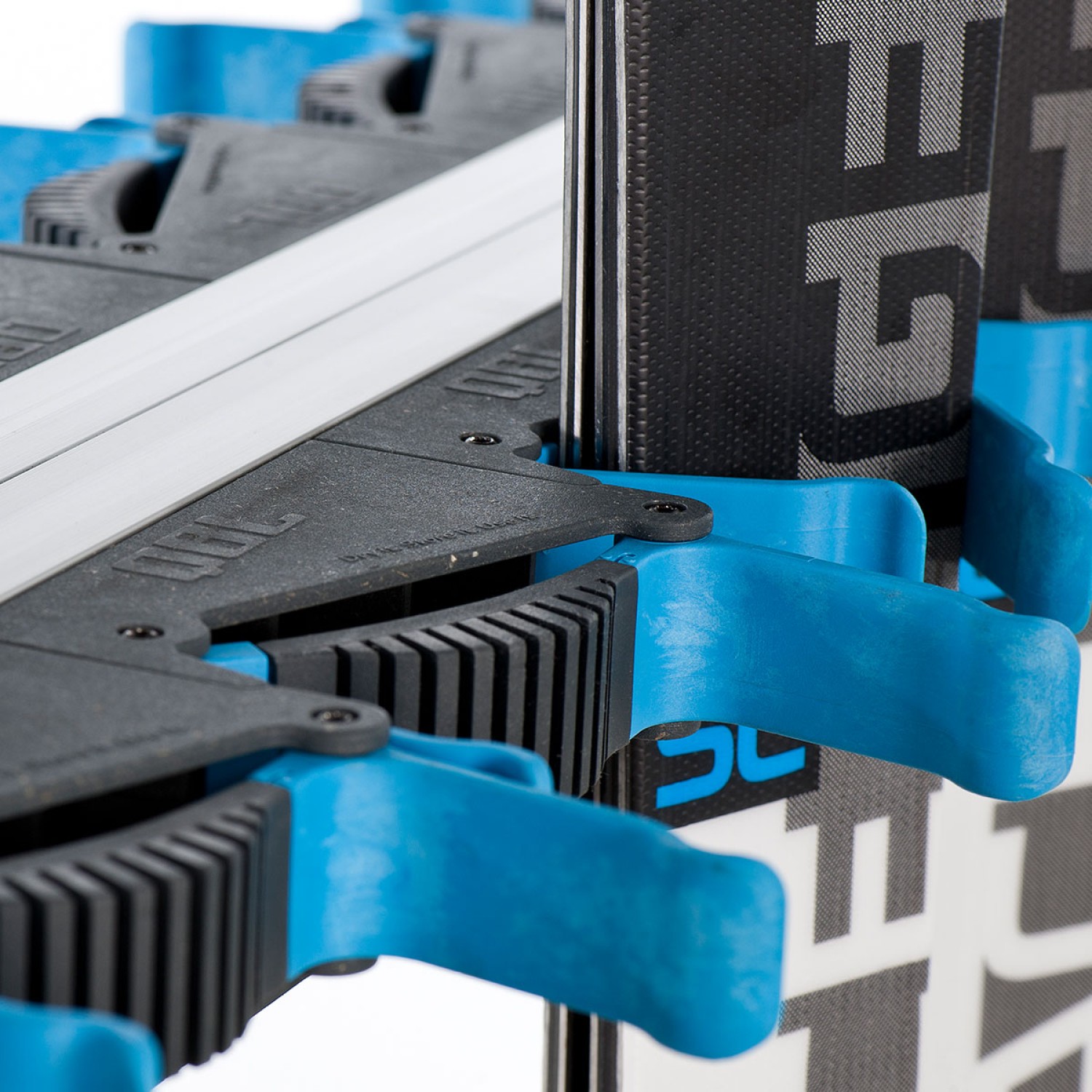

The CliQ holder has been designed to maximise the storage functionality of the skis. Its uniqueness lies in its effective combination of several key features: secure hold on equipment, exceptional ease of use, the possibility of storing different types, lengths and widths of skis and impressive presentation. The innovative design and the patented operating mechanism of the holder allow to insert your skis intuitively and quickly – with just one hand. Slight pressing of the rubbercoated spring plate closes the arms, which stiffen the skis in the holder extremely firmly. The skis are stored at an angle of 22°, which gives them a truly attractive display. There are two models of the CliQ Holder for differents ski categories_ CliQ and CliQ XL.
ERGONOMIC SHELVES
MORE STORAGE POSSIBILITIES

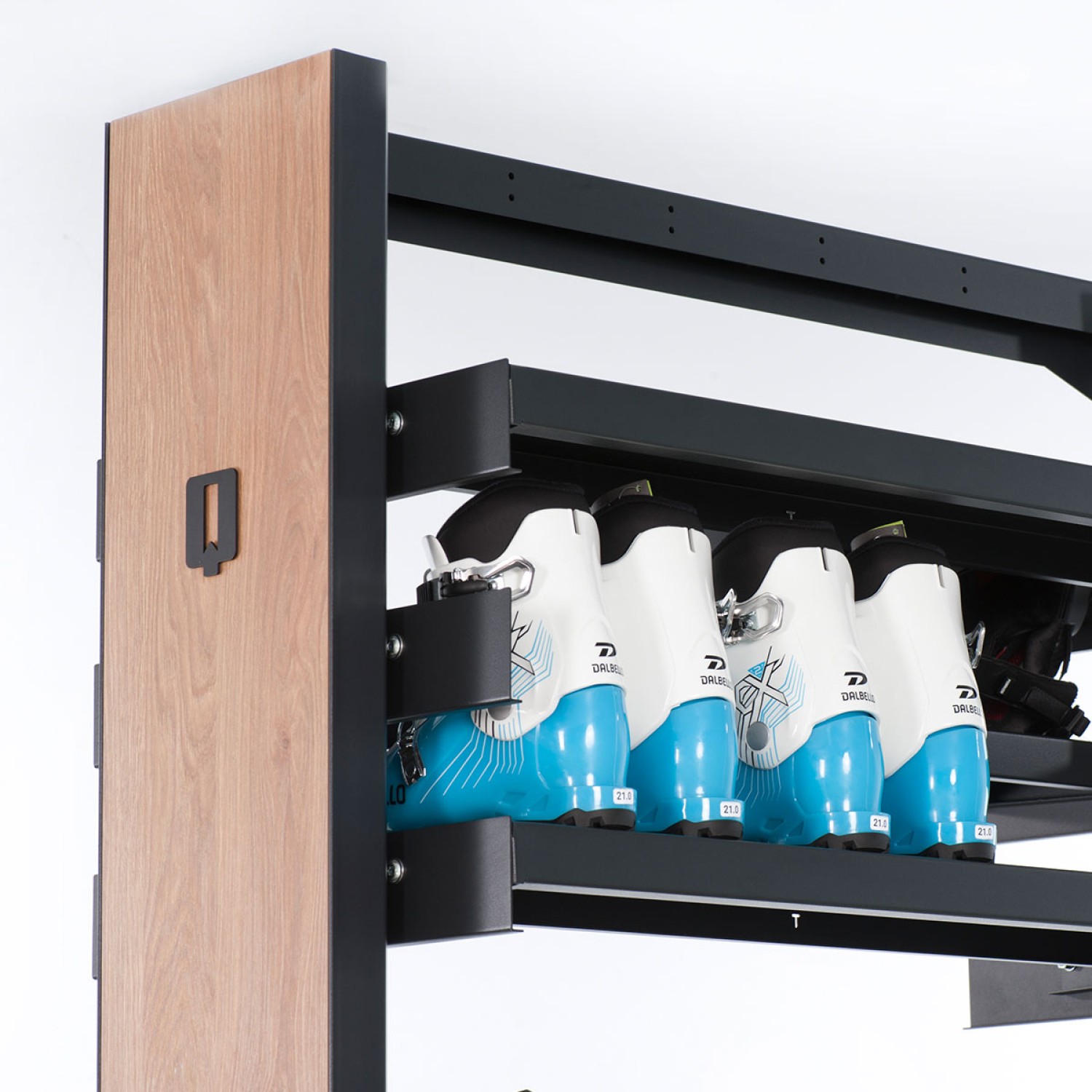

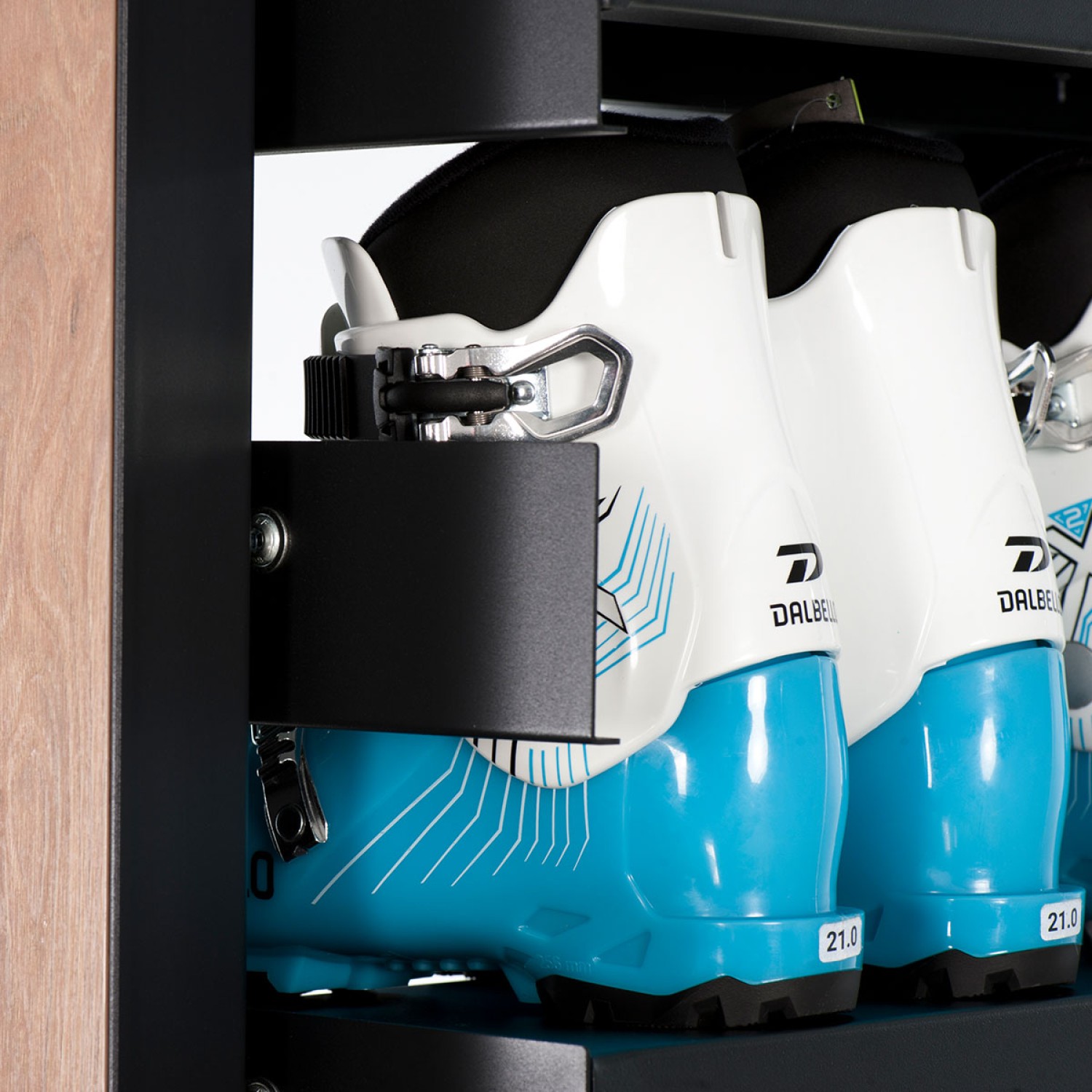

Shelves are the main component of some products, but they are also a very useful optional accessory for virtually every model of the rack. Thanks to their design and dimensions, they are perfect for storing helmets, boots and many other accessories. Additionally, the solution of mounting them at a slight angle reduces the risk of equipment falling out when the racks are dynamically moved or collided. With the adjustment systems in the racking columns, the mounting heights of the shelves and the spacing between them can be adapted to the size of the equipment stored. The edges of the shelves have been rounded off to avoid stripping the equipment and to prevent hand injuries when taking boots from the rack. The shelves are made of highquality 1.5mm galvanised steel and are powder-coated.
POST WITH HOOKS
OPTIONAL STORAGE OF POLES
A post with profiled steel hooks is an optional racking component for hanging ski poles or other accessories. The post is mounted at any height of the columns, at the top of ski racks – most often in situations where skis should be stored together with their poles (e.g. in small ski depots or for private use).
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
WATER TUB
WATER COLLECTION – THE COMFORT OF A DRY FLOOR
Racks and dryers with an open interior of the frame can be optionally equipped with a steel tub with a rubber mat, which serves for collecting water and dirt dripping from stored skis, snowboards or dried boots. The tub is made of galvanised steel, thus maintaining its resistance to corrosion. Adjusting the structure to the frames of the racks and dryers allows for easy removal and emptying. The use of the tub reduces moisture and dirt on the floor and in the area of the rail system.
TECHNOLOGIES_
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
GRIP OF SKIS_ THE CLIQ HOLDER
INNOVATIVE & SUPEREFFICIENT SKI HOLDING SYSTEM
ERGONOMIC SHELVES
MORE STORAGE POSSIBILITIES
POST WITH HOOKS
OPTIONAL STORAGE OF POLES
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
WATER TUB
WATER COLLECTION – THE COMFORT OF A DRY FLOOR
