PRODUCT DESCRIPTION_

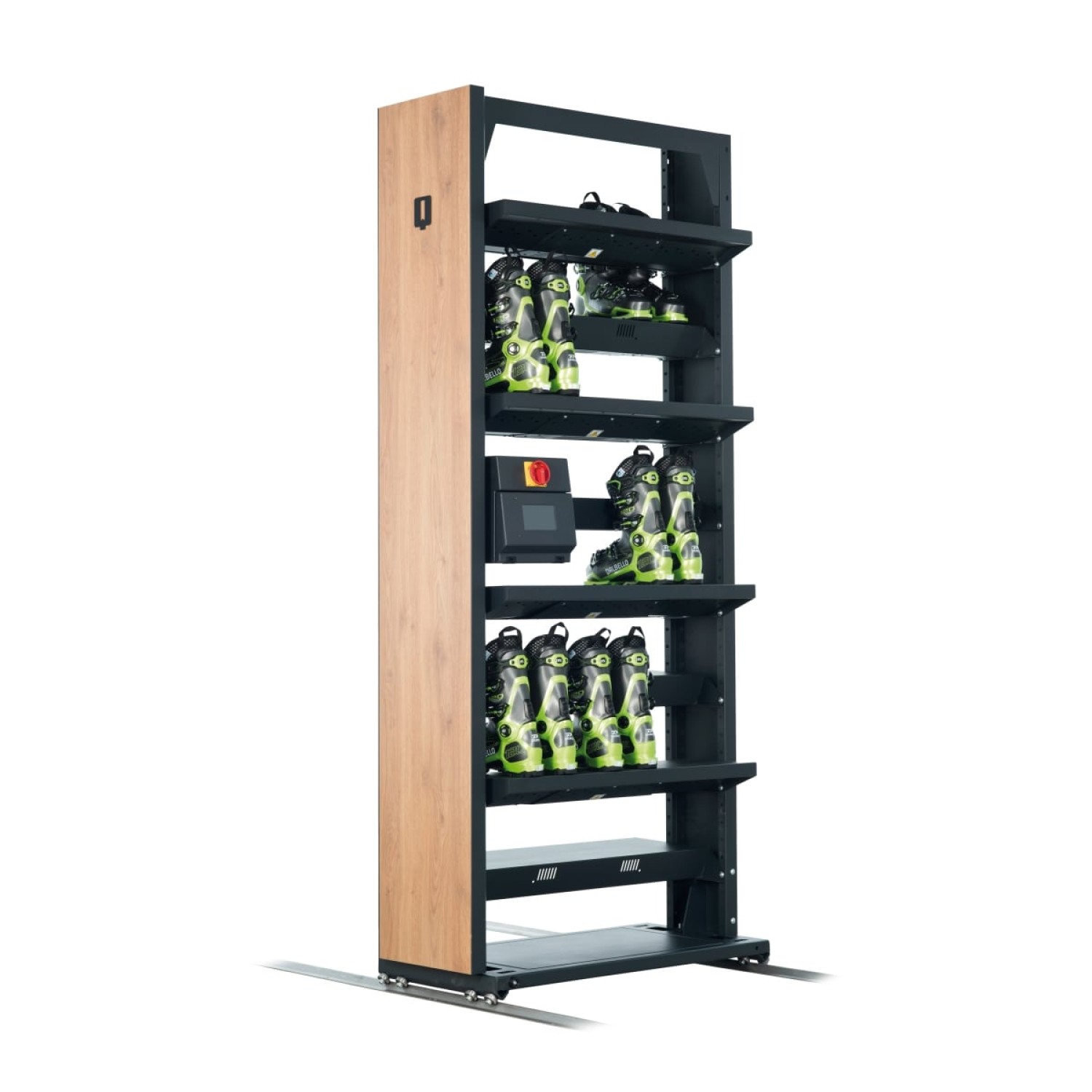

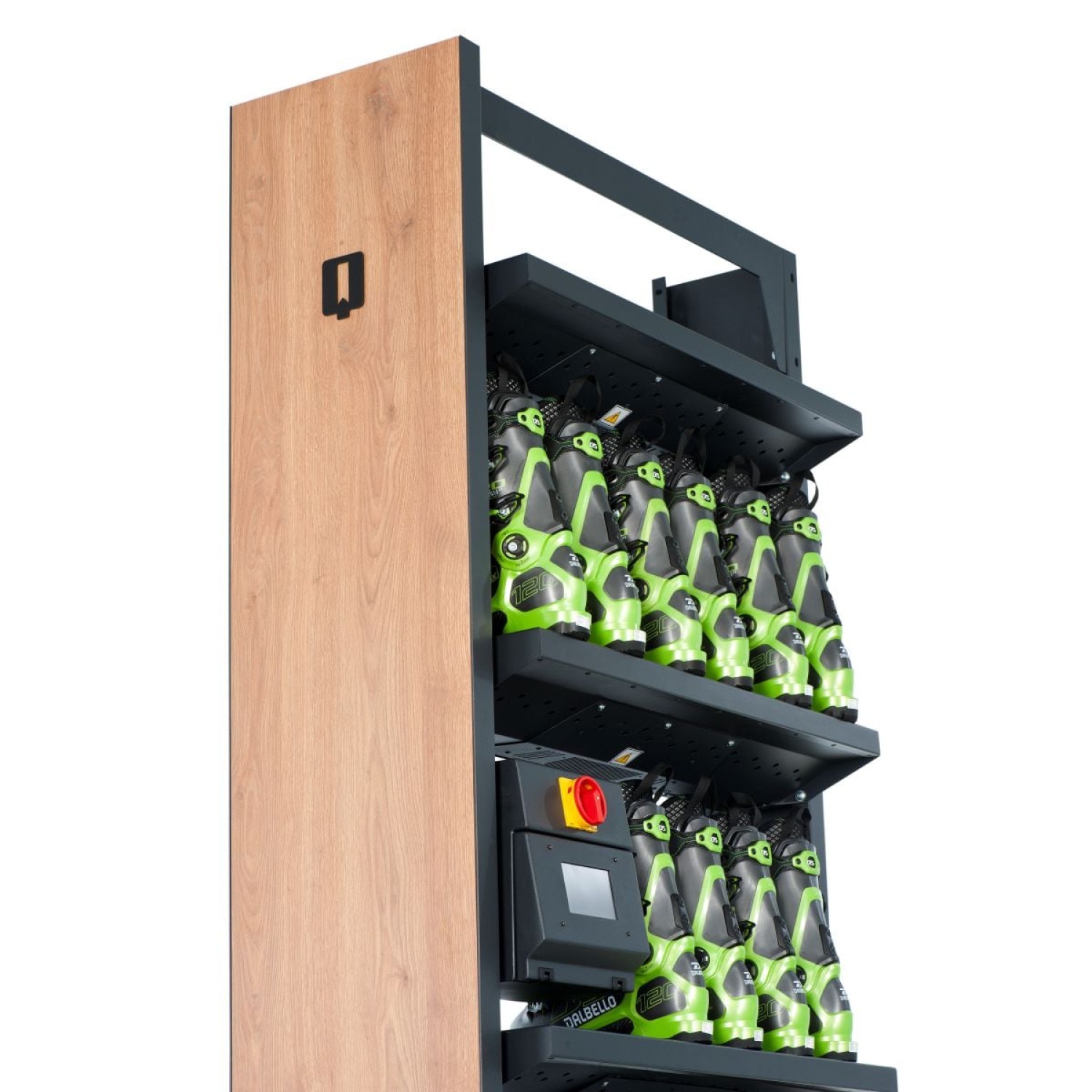

The Boot Dryer Wind combines the functions of a boot rack and a dryer. The construction of the device consists of a frame, columns, control box and 11 shelves. The height of the shelves is adjustable, which enables adapting distances between them to the height of the boots stored. Nine out of the eleven shelves have a built-in heating system comprising a heater and a fan. The fan injects air into the boots placed on the shelf below through small holes. The electrical system of the dryer is divided into three segments and it is made of high-quality components designed for continuous operation. All functions of the dryer are controlled using a touchscreen. Using a few buttons you can set the operating mode of each segment, its air temperature and drying times.
SPECIFICATION_
LENGTH MM | CAPACITY pairs of boots | POWER CONSUMPTION* W |
1500 | 54 | 480/4980 |
1800 | 65 | 480/4980 |
2000 | 76 | 480/4980 |
2400 | 87 | 480/4980 |
3000 | 109 | 480/4980 |
4000 | 152 | 480/4980 |
HEIGHT 2420 mm | WIDTH 500 mm | VOLT.* 230/3x400 V |
*without heating / with heating
![DOUBLE PROTECTION](https://qbl-systems.com/storage/app/media/site/sample/Technology/General/G1_doubl_protection.jpg )
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
![FOUR VISUAL LINES](https://qbl-systems.com/storage/app/media/site/sample/Technology/General/G3_four_visual_lines.jpg )
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL

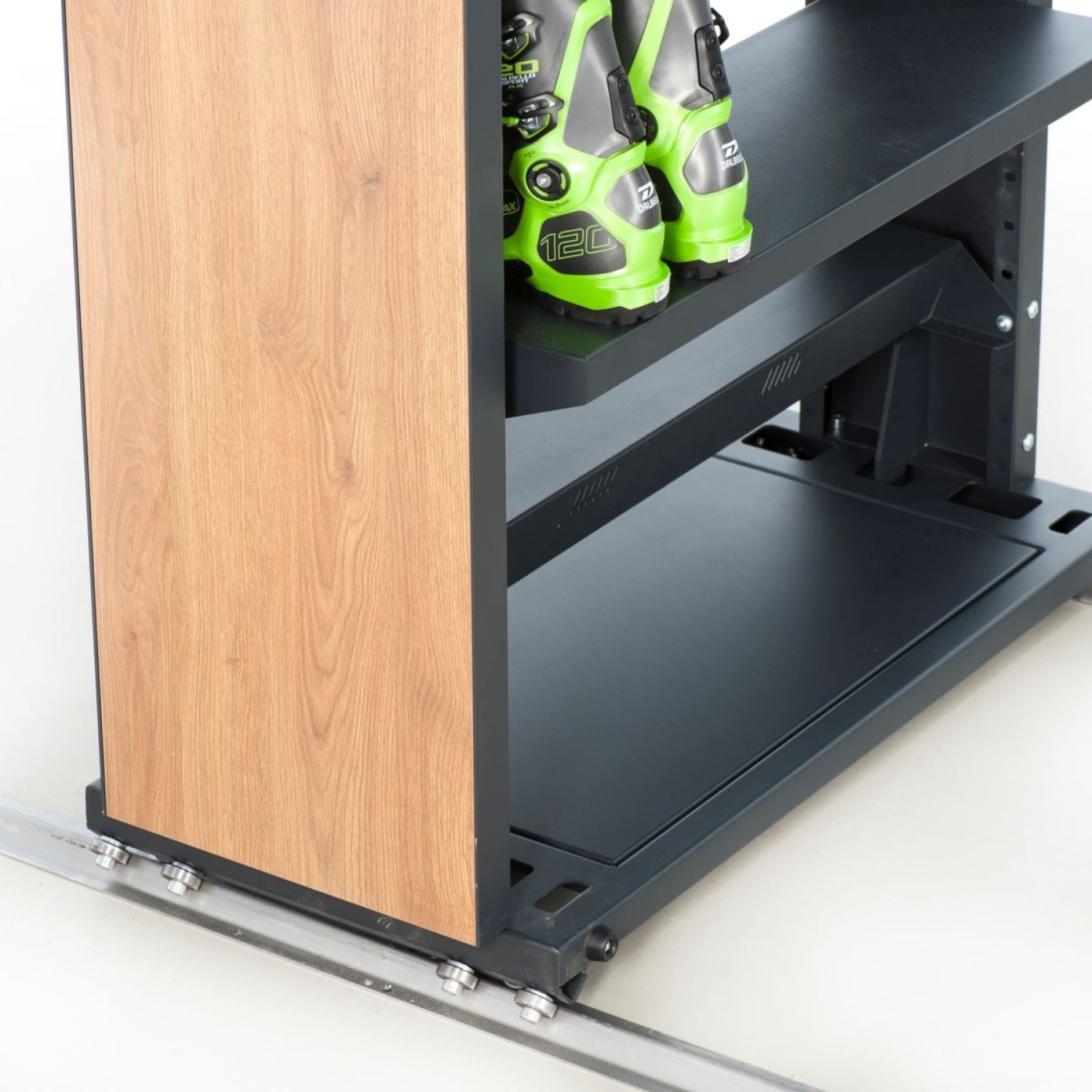

![RUNNING SYSTEM](https://qbl-systems.com/storage/app/media/site/sample/Technology/Storage/S12_running_system.jpg )
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT

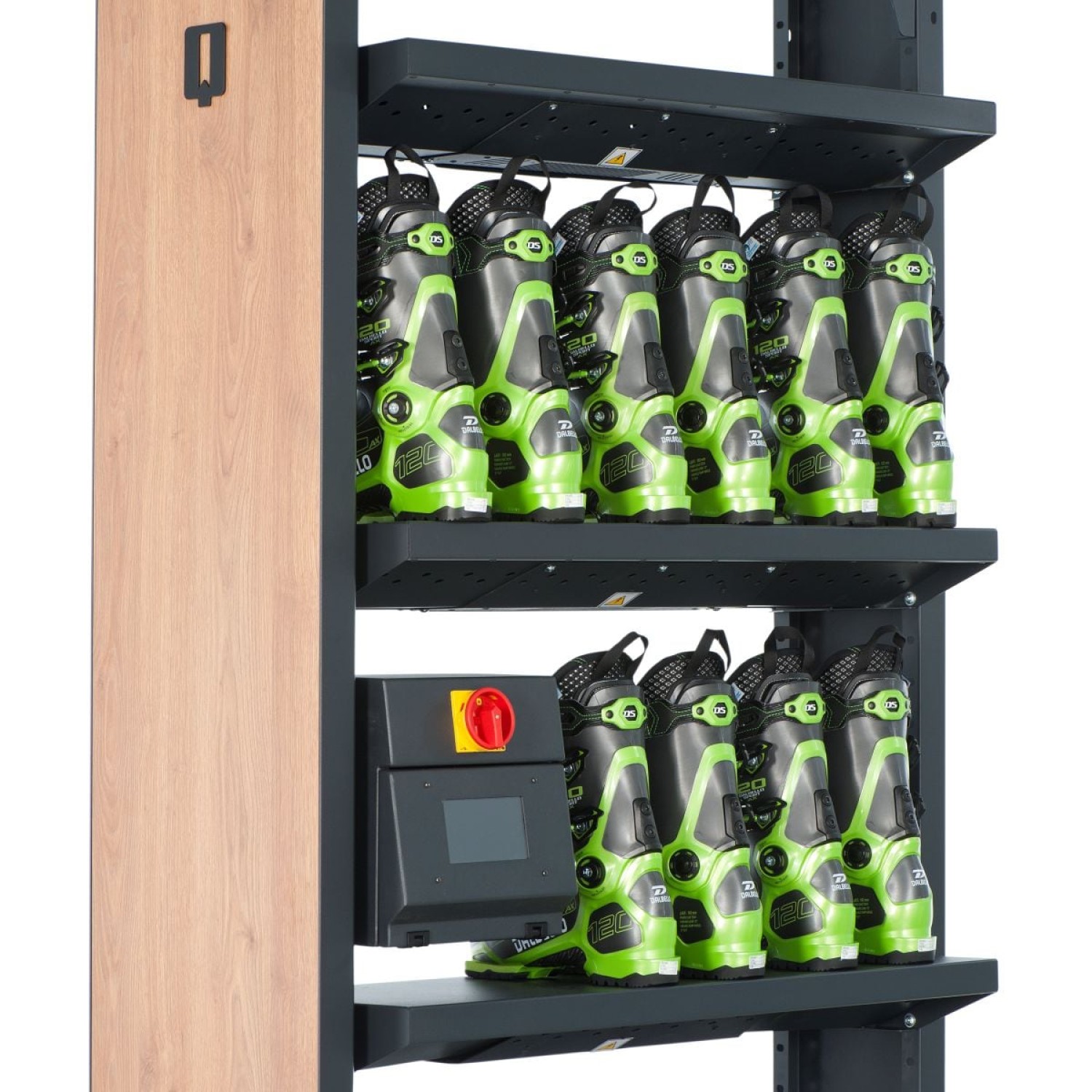

![SHELVES WITH HEATING MODULES](https://qbl-systems.com/storage/app/media/site/sample/Technology/Dryers/D2_shelves_with_heating_modules.jpg )
SHELVES WITH HEATING MODULES
HIGH PRESSURE AIR FLOW COMING DOWN FROM EACH SHELF
![TOUCHSCREEN](https://qbl-systems.com/storage/app/media/site/sample/Technology/Dryers/D4_touchscreen.jpg )
TOUCHSCREEN
COMMUNICATION BETWEEN THE USER & THE DEVICE
![ELECTRONIC CONTROL](https://qbl-systems.com/storage/app/media/site/sample/Technology/Dryers/D5_electronic_control.jpg )
ELECTRONIC CONTROL
OPTIMISATION & OPERATIONAL EFFICIENCY
![DRYING EFFICIENCY](https://qbl-systems.com/storage/app/media/site/sample/Technology/Dryers/D6_drying_efficiency_2.jpg )
DRYING EFFICIENCY
CAREFULLY DESIGNED SYSTEMS & SELECTED COMPONENTS
![PROTECTION SYSTEM](https://qbl-systems.com/storage/app/media/site/sample/Technology/Dryers/D8_protrction_system.jpg )
PROTECTION SYSTEM
SAFETY OF USE
