Snowboard

Snowboards 100%

PRODUCT LINE_ Standard

PRODUCT DESCRIPTION_

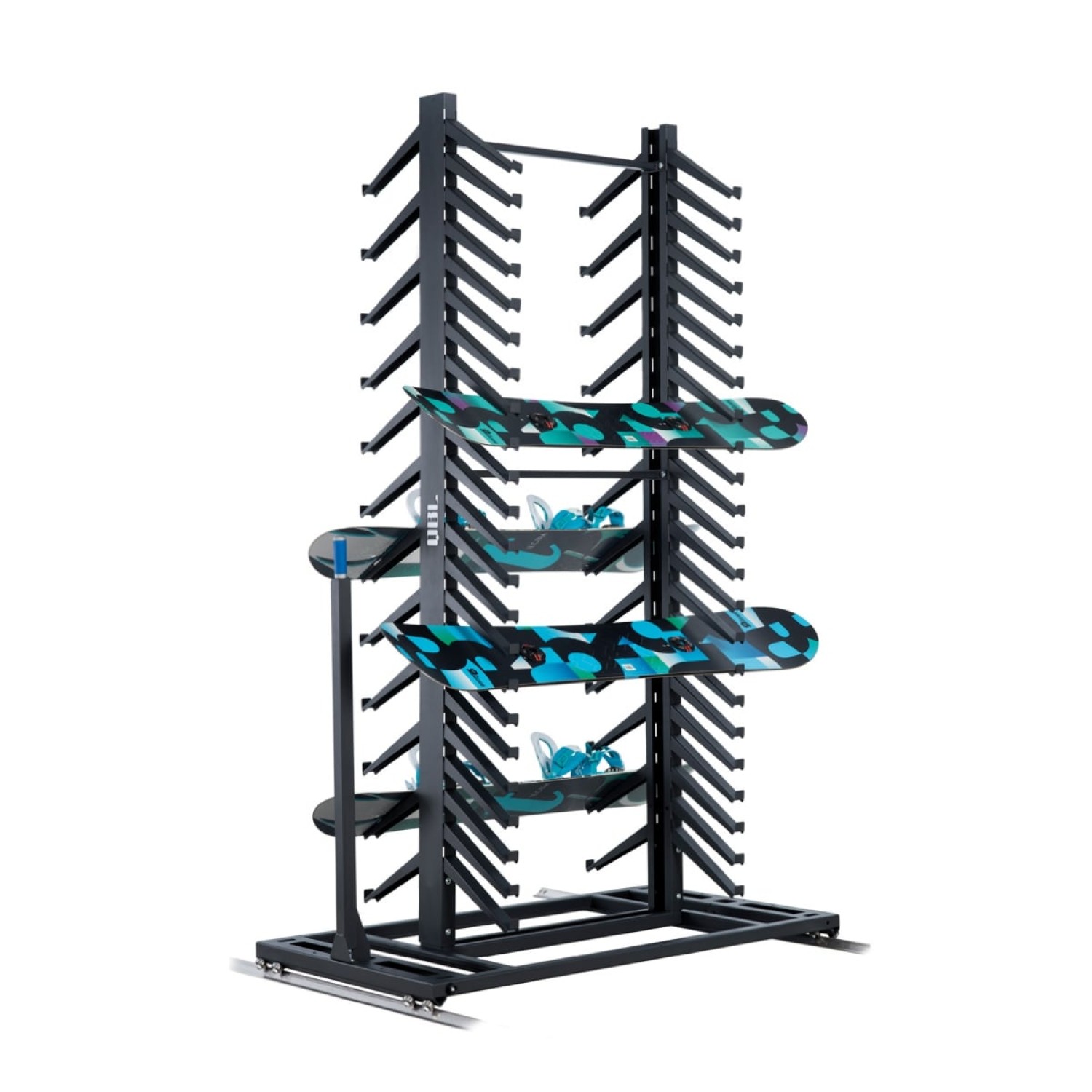

The rack enables the storage of snowboards with classic and rental bindings. Boards are placed horizontally on special hooks attached to two vertical columns. The surface of the forks is covered with a special anti-slip rubber coat to guarantee stability and safety of the stored gear. The hooks can be mounted on different levels of the columns in order to provide the best use of space, according to one’s needs and preferences. The capacity of the rack varies depending on the type of snowboard bindings. Rental snowboard bindings make it possible to store two snowboards with their bases facing each other on one hook level. If snowboards with classic bindings are stored, one board per one hook level system applies.

Product Datasheet QBL Catalogue Ski Rental & Service'24

SPECIFICATION_

LENGTH MM CAPACITY* snowboards
1500 24/48
1800 24/48
2000 24/48
2400 48/96
3000 48/96
4000 48/96

*boards with classical / rental bindings

close
DOUBLE PROTECTION

DOUBLE PROTECTION

DURABILITY & PROTECTION AGAINST CORROSION

The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
close
FOUR VISUAL LINES

FOUR VISUAL LINES

DIVERSE DESIGN OF THE FRONT PANEL

The main rack and dryer models are available in four different visual options which differ in the design of the front column. The Standard line is featured by a classic anthracite frontside, whilst the MiniPanel line by a modern white panel with a contrasting solid handle. The Panel line is distinguished by a wide, elegant board with an oval stainless-steel handle attached to it; the UniQ line offers unlimited possibilities for the selection of materials, which includes a delicate casing of a wide front column with a comfortable inner handle. The choice of different visual lines enables QBL products to be properly matched to the interior design and character of the facility in which they are used.
close
ADJUSTMENT SYSTEMS

ADJUSTMENT SYSTEMS

OPTIMAL USE OF AVAILABLE SPACE

QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
close
GRIP OF SNB_ HORIZONTAL SYSTEM

GRIP OF SNB_ HORIZONTAL SYSTEM

TRADITIONAL & UNIVERSAL WAY OF HOLDING SNOWBOARDS

The traditional horizontal storage of snowboards is simple and universal in use and allows the storage of boards of various sizes – with both classic and rental bindings. The structure consists of two columns with holes along their entire height, used for attaching pairs of hooks on which snowboards are placed. The spacing between the hooks, thanks to the densely perforated columns, can be varied to optimise the use of available space. The upper surface of the hooks is covered with a rubber coat which has anti-slip properties and effectively protects them from scratches. One level of hooks can store one board with classic binding or two boards with rental bindings.
close
RUNNING SYSTEM

RUNNING SYSTEM

SPACE SAVING, MOBILE & CONVENIENT

The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
