Rental Plus
Skis 25% | Snowboards 50% | Ski poles 25%
PRODUCT LINE_ UniQ
PRODUCT DESCRIPTION_

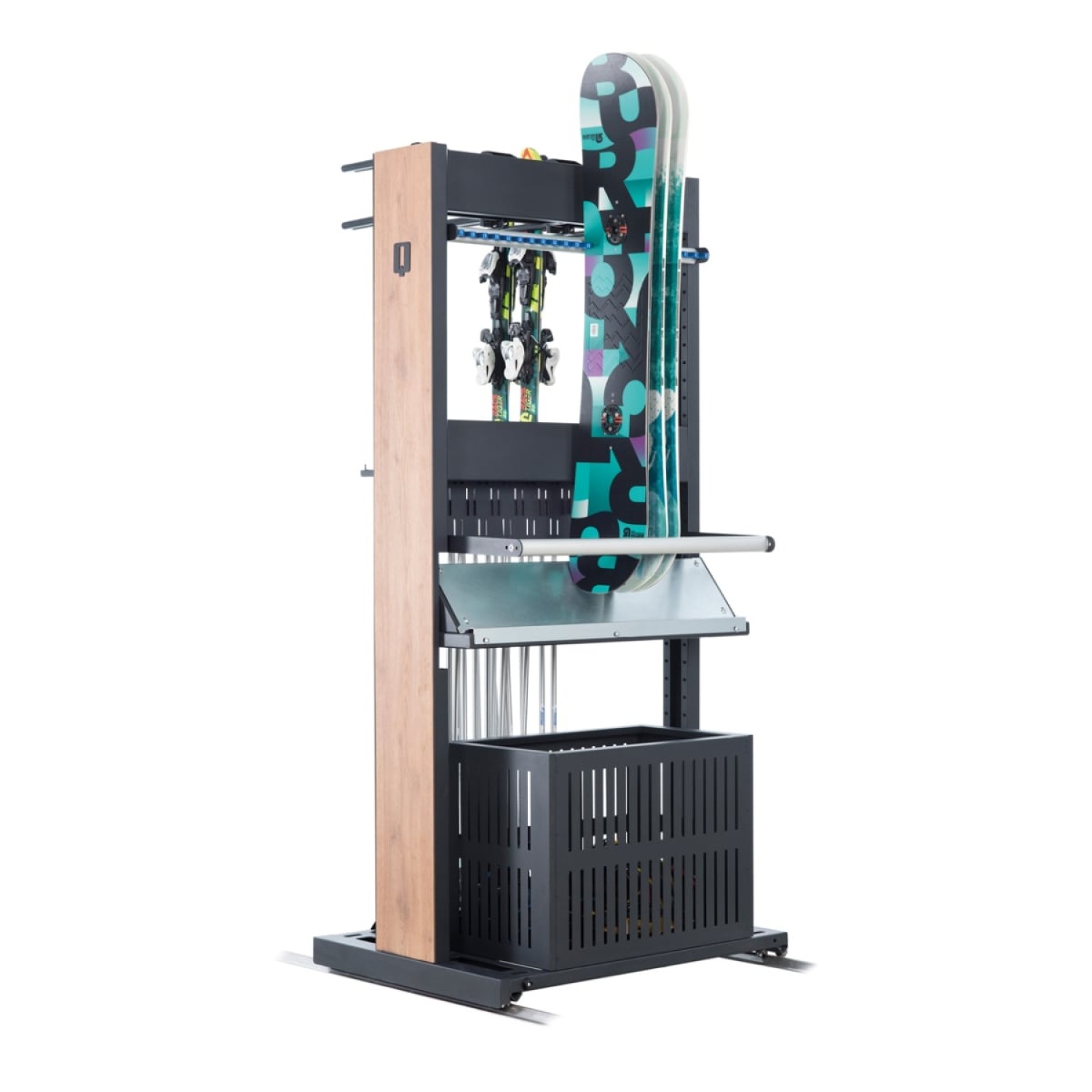

Rental Plus is the ISPO Award Winner. It is a multifunctional and extremely capacious rack for storing skis, snowboards, bindings and ski poles. The rack has a system for fixing components on many different heights. This feature enables the storage of winter sports gear of different sizes and give the possibility to freely arrange forks on the levels, which results in an exceptional functionality and capacity. One side of the rack consists of a steel basket for snowboard rental bindings. A hood and aluminum crossbars with attached special blue plastic grips are located in the upper part. The grips are used to stabilize snowboards in a vertical position. The other side of the rack has been designed to store junior skis and ski poles on two steel levels with adequate forks. Each ski fork is coated with a special anti-slip rubber paint. Forks for poles are in the form of specially designed two steel arms between which it is possible to store up to four pairs of poles.
QBL Catalogue Ski Rental & Service'24
SPECIFICATION_
| LENGTH MM | CAPACITY* |
| 1500 | 15+124+30 |
| 1800 | 18+156+40 |
| 2000 | 21+168+40 |
| 2400 | 27+200+50 |
| 3000 | 33+244+60 |
| 4000 | 42+336+80 |
| HEIGHT 2420 mm | WIDTH 800 mm |
*Pairs of skis + pairs of poles + snowboards
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
The main rack and dryer models are available in four different visual options which differ in the design of the front column. The Standard line is featured by a classic anthracite frontside, whilst the MiniPanel line by a modern white panel with a contrasting solid handle. The Panel line is distinguished by a wide, elegant board with an oval stainless-steel handle attached to it; the UniQ line offers unlimited possibilities for the selection of materials, which includes a delicate casing of a wide front column with a comfortable inner handle. The choice of different visual lines enables QBL products to be properly matched to the interior design and character of the facility in which they are used.
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
GRIP OF SKIS_ FORK SYSTEM
BY FAR THE MOST SPACEEFFICIENT HOLDING SYSTEM
The fork-based system is the most capacious way to store skis. The forks are made of 3mm-thick steel and four steel tubes to hang the skis on. The surface of the forks is covered with a rubber coat, which has anti-slip properties and effectively protects them from scratches. The forks are fixed at any distance on the steel levels – allowing maximum use of the available space on the rack. The structure has been designed in such a way that, thanks to the gentle slope of the steel tubes, the risk of equipment falling out during dynamic movement or collision of the racks is reduced. Each fork can safely store two to three pairs of senior skis.
GRIP OF SNB_ 3-POINT SYSTEM
VERTICAL STORAGE WITH EXCEPTIONAL CAPACITY

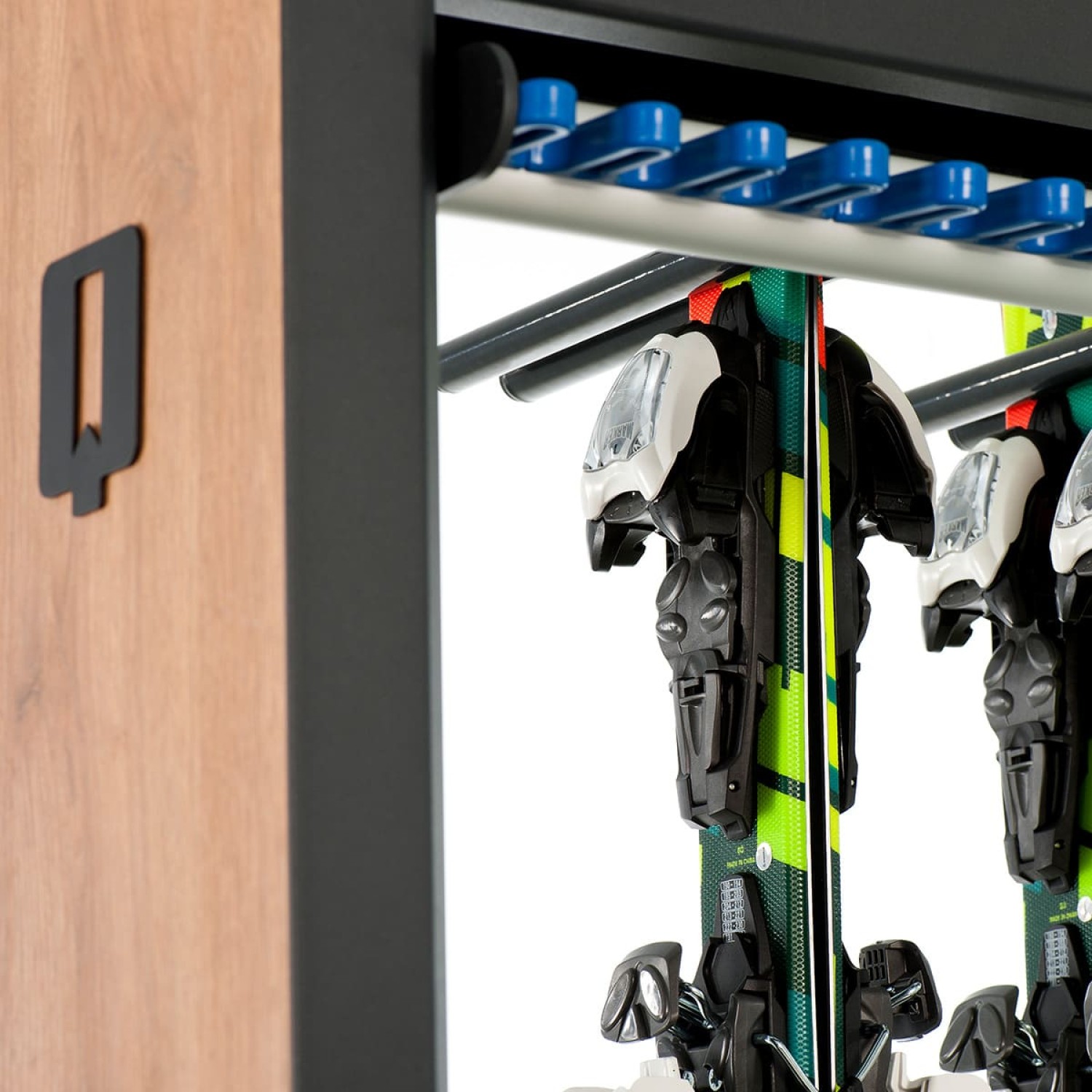

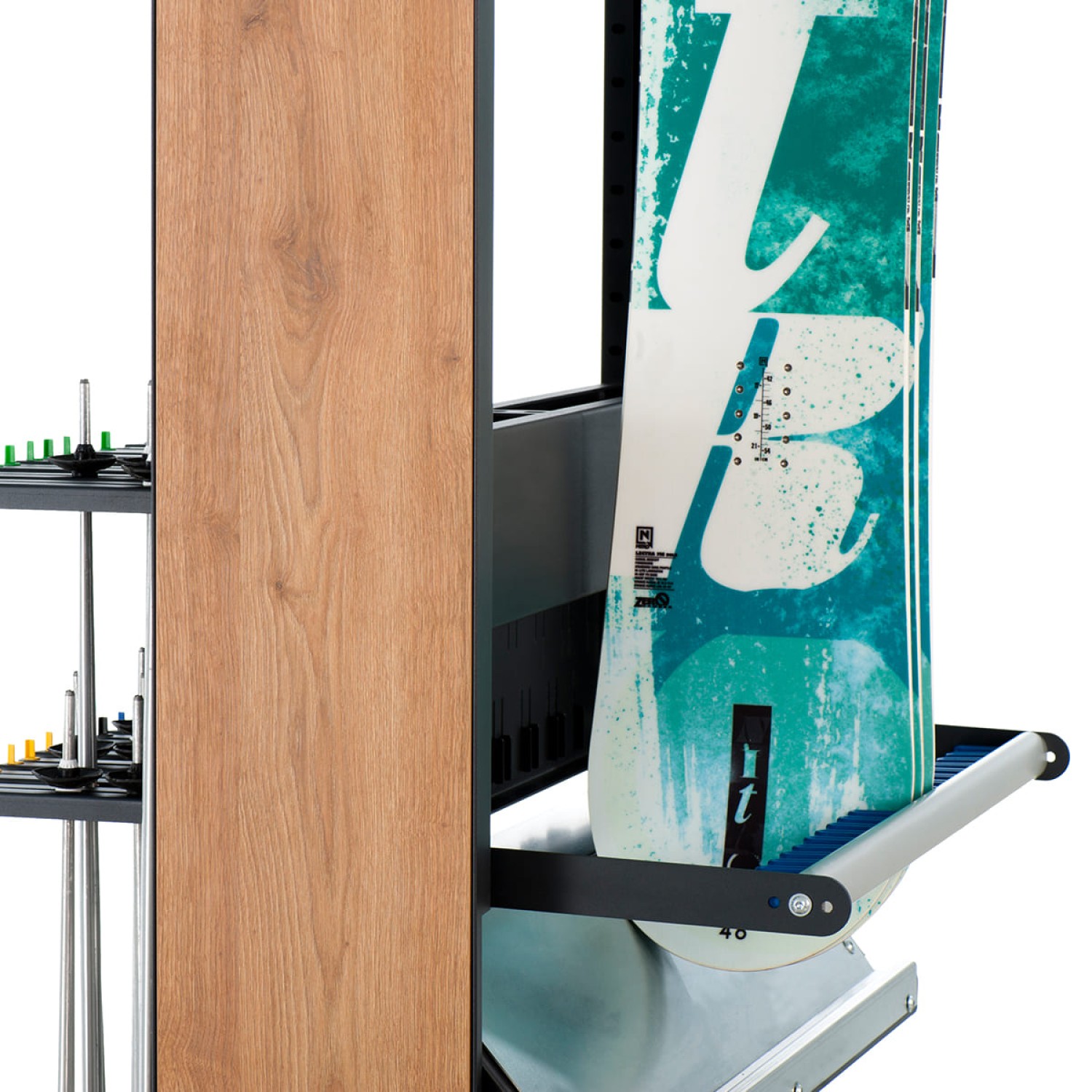

The technique of holding snowboards in a vertical position is based on a three-point contact system of the rack with the edge of the snowboard, ensuring not only a firm hold of the equipment, but also the safety of its storage. The system consists of upper and lower aluminium crossbars with blue plastic elements attached to them as partitions between boards, and a galvanised steel hood. The hood has a channel that drains water away from the rack. The storage of snowboards in a vertical position brings extraordinary capacity and functionality. The mounting positions of the crossbars which hold the boards can be adjusted to suit the size of the equipment stored.
POLE FORKS
CAPACITY & CONVENIENCE OF STORAGE

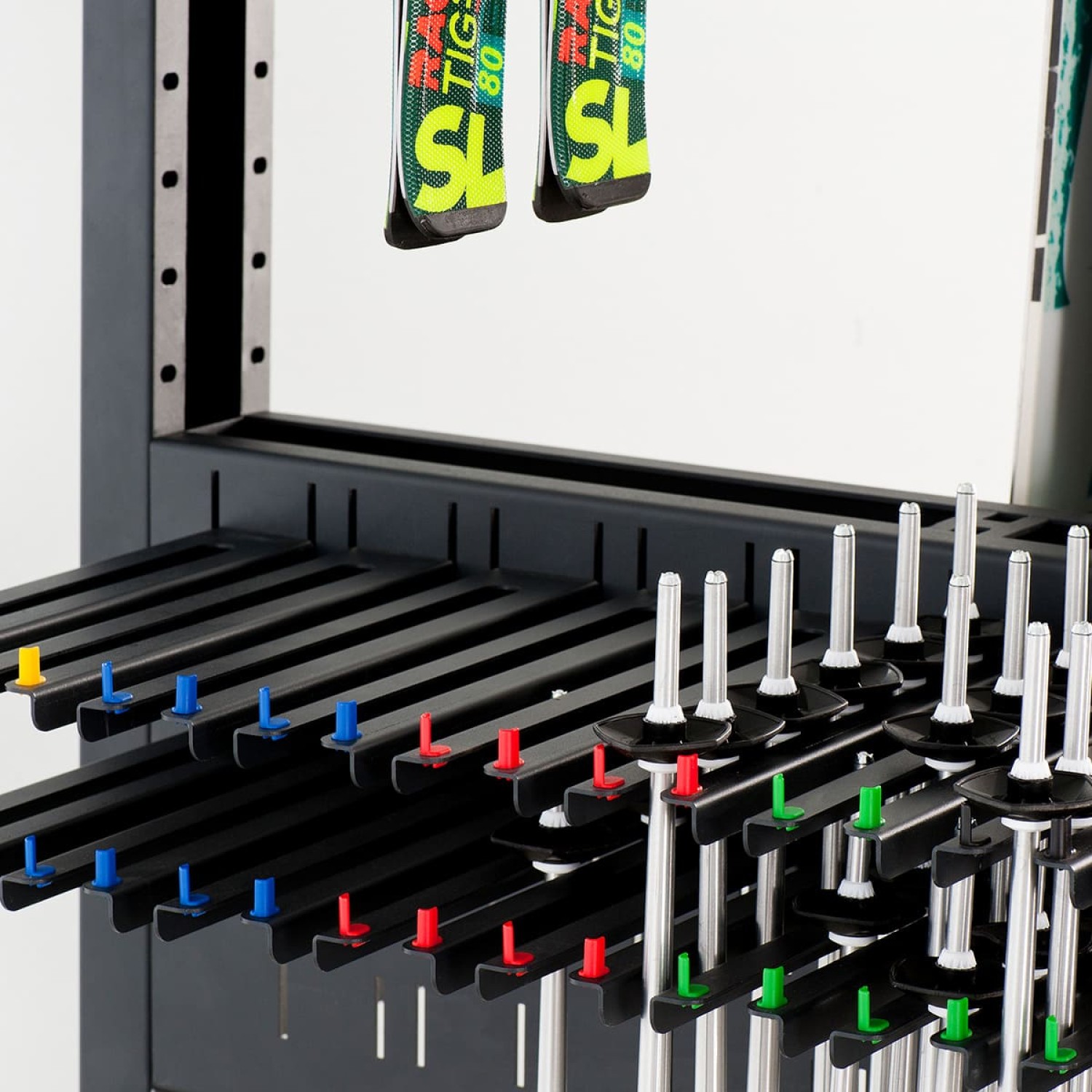

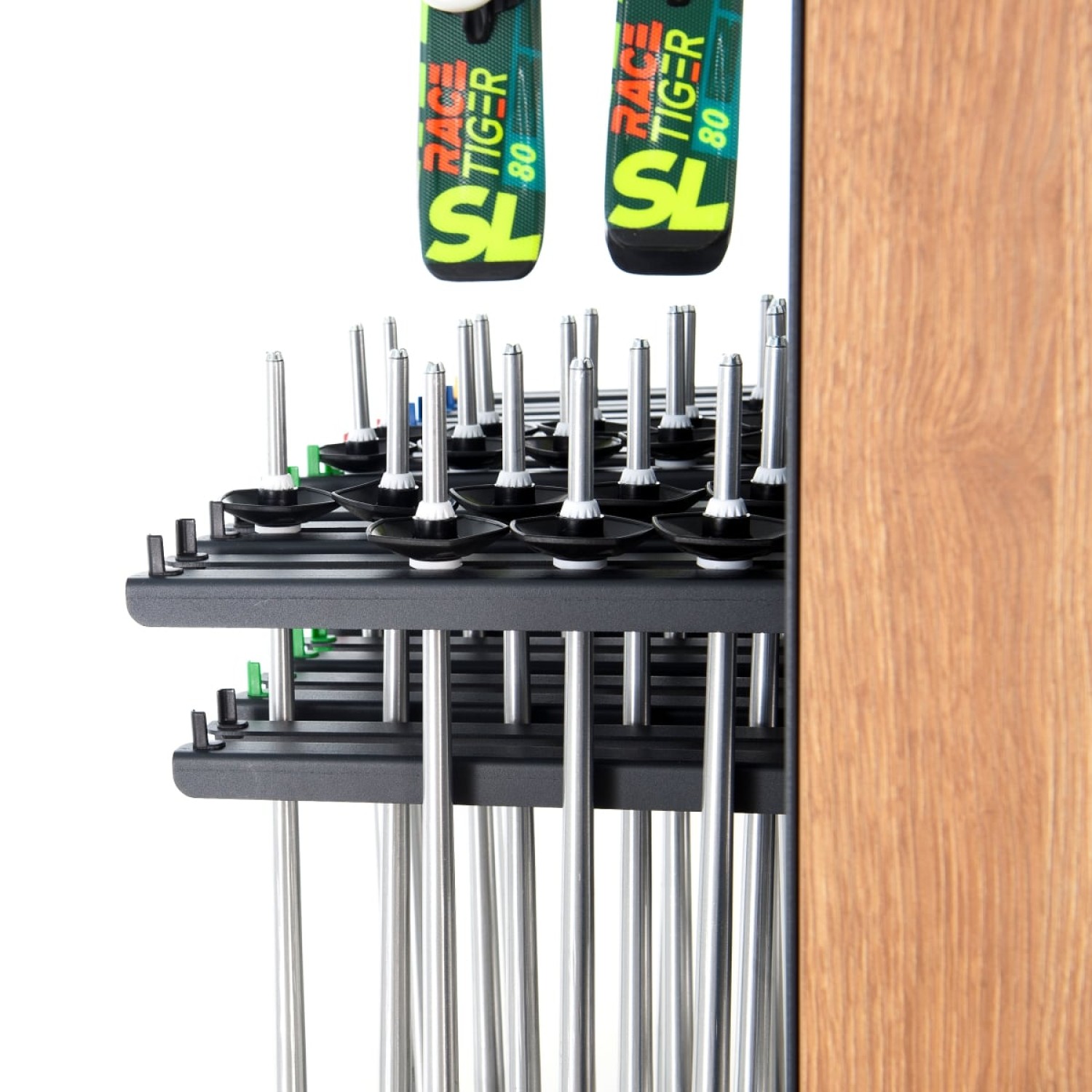

The storage of ski poles is based on forks made of 2 mm-thick galvanised sheet steel. Their design includes two long contoured arms between which the poles are inserted. The forks are mounted in steel levels with numerous holes spaced at two or four heights, allowing the forks location to be optimally matched to the length of the poles. Each standard-length fork holds up to four pairs of poles and is finished with a pair of plastic elements to keep the poles from falling out. The available colours of the plastic tips correspond to the length markings of the rental poles, helping you to store them in the right order.
STEEL BOX
SPACIOUS EXTRA STORAGE CAPACITY FOR BINDINGS OR OTHER ACCESSORIES

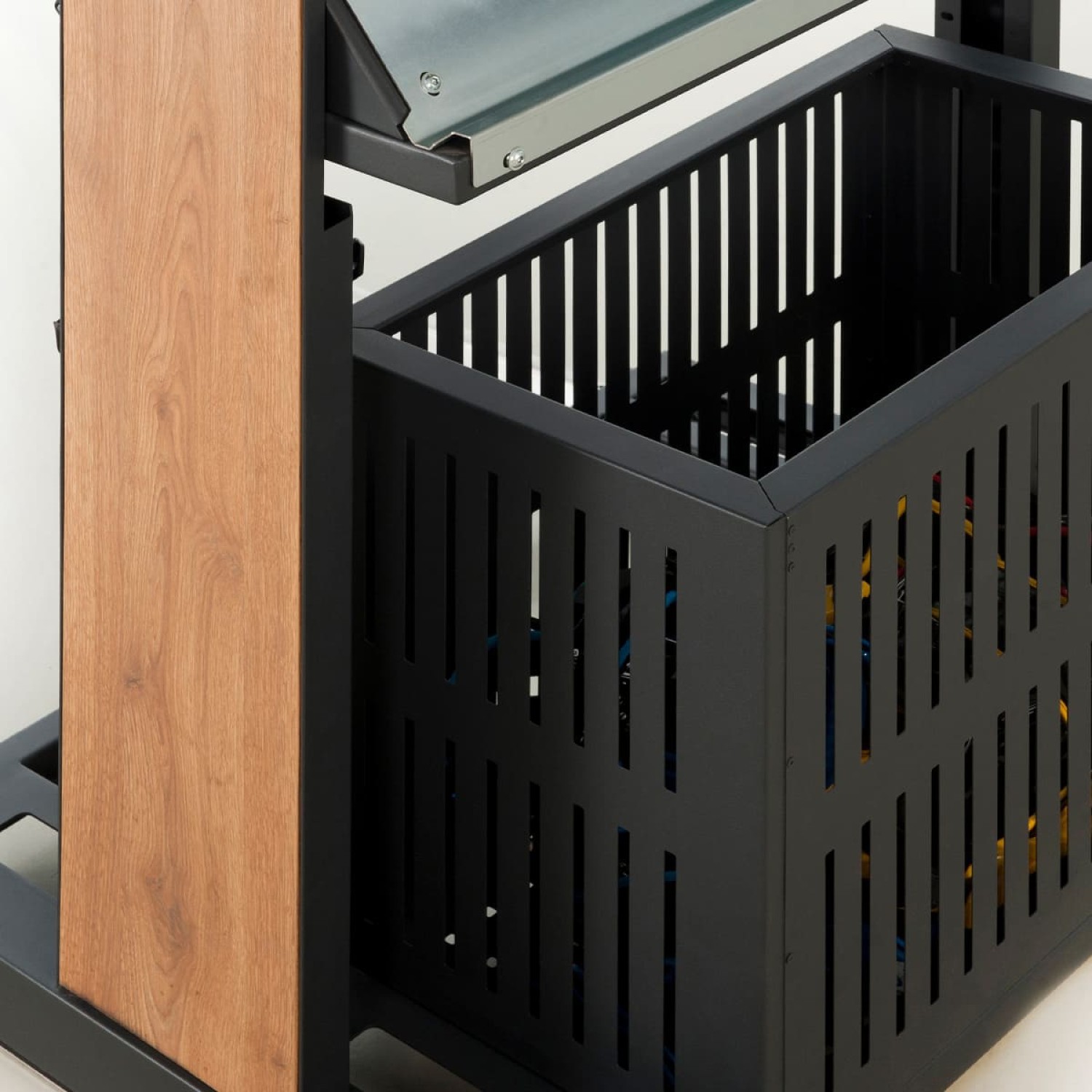

The capacious steel basket is made of 1mm-thick perforated sheet metal covered with powder coating. Thanks to additional zinc protection, it is resistant to moisture. The basket is located on a frame at the bottom of the rack and is intended for storing rental snowboard bindings, helmets and other types of gear. The interior structure is open, or – on request – divided, thus allowing different categories or sizes of equipment to be stored in separate compartments.
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
FRAME
RIGID STRUCTURE, SAFETY OF USE
All racks and dryers in the rail system are equipped with a structural frame made of 3mm-thick steel, which is their load-bearing base and ensures the rigidity and stability of the entire system. The frame also acts as a running structure, ensuring safe and even guidance of products on the rails. The frame is double protected against corrosion – it is made of galvanised steel and covered with a layer of powder coating.
WATER HOOD
WATER DRAINAGE & SUPPORT POINT FOR SKIS AND SNOWBOARDS
The water hood is made of galvanised steel or (optionally) stainless steel with a thickness of 1.5mm, thus maintaining its anti-corrosion properties. It is located on a frame designed with a slight angle of inclination so that dripping water from skis or snowboards does not accumulate but flows away through the hood channel outside the rack and its rail system. The thoughtful design of the water hood not only drains water, but is also a component of the three-point holding system for skis and snowboards.
Single Forks
FOR A VARIETY OF STORAGE NEEDS
The single fork is designed as an alternative universal solution for various storage needs, including snowshoes, snowboard bindings and ski poles. The simplicity of design gives the fork exceptional utility. The 22mm diameter of the steel tube that the equipment hung on has a widened end to prevent it from falling out. The fixing of the single fork in the holes corresponds to the fixing of the pole fork so that both elements can be used interchangeably on one construction level. Thanks to the compact form of the steel level, it may be attached to standard shelving models as additional storage solution.
TECHNOLOGIES_
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
GRIP OF SKIS_ FORK SYSTEM
BY FAR THE MOST SPACEEFFICIENT HOLDING SYSTEM
GRIP OF SNB_ 3-POINT SYSTEM
VERTICAL STORAGE WITH EXCEPTIONAL CAPACITY
POLE FORKS
CAPACITY & CONVENIENCE OF STORAGE
STEEL BOX
SPACIOUS EXTRA STORAGE CAPACITY FOR BINDINGS OR OTHER ACCESSORIES
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
FRAME
RIGID STRUCTURE, SAFETY OF USE
WATER HOOD
WATER DRAINAGE & SUPPORT POINT FOR SKIS AND SNOWBOARDS
Single Forks
FOR A VARIETY OF STORAGE NEEDS
FRONT BOARD DECORS_
CLEAF
SABLÈ ABBEY
LR33
Cleaf
SHERWOOD KENSINGTON PARK
s072
Cleaf
PEMBROKE THAMES
S120
cleaf
ENGADINA ADULA
S060
Cleaf
ENGADINA BEVERIN
S061
Cleaf
SHERWOOD GREENWICH PARK
S071
Cleaf
MILLENNIUM NERO
U129
Egger
WHITEWOOD
H1122
Egger
EGGER WHITE HALIFAX OAK
H1176
egger
NATURAL HALIFAX OAK
H1180
Egger
BROWN KANSAS OAK
H1113
Egger
MALI WENGE
H3058
Egger
Bramberg Pine
H1487
Egger
Gladstone Oak
H3309
Egger
NATURAL NEBRASKA OAK
H3331
