Helmet Rack
Helmets 100%
PRODUCT LINE_ UniQ
-
PRODUCT DESCRIPTION
-
Made in EU
24 Months Guarantee
SPECIFICATION
TECHNOLOGIES
FRONT BOARD DECORS
PRODUCT GALLERY
PRODUCT DESCRIPTION_

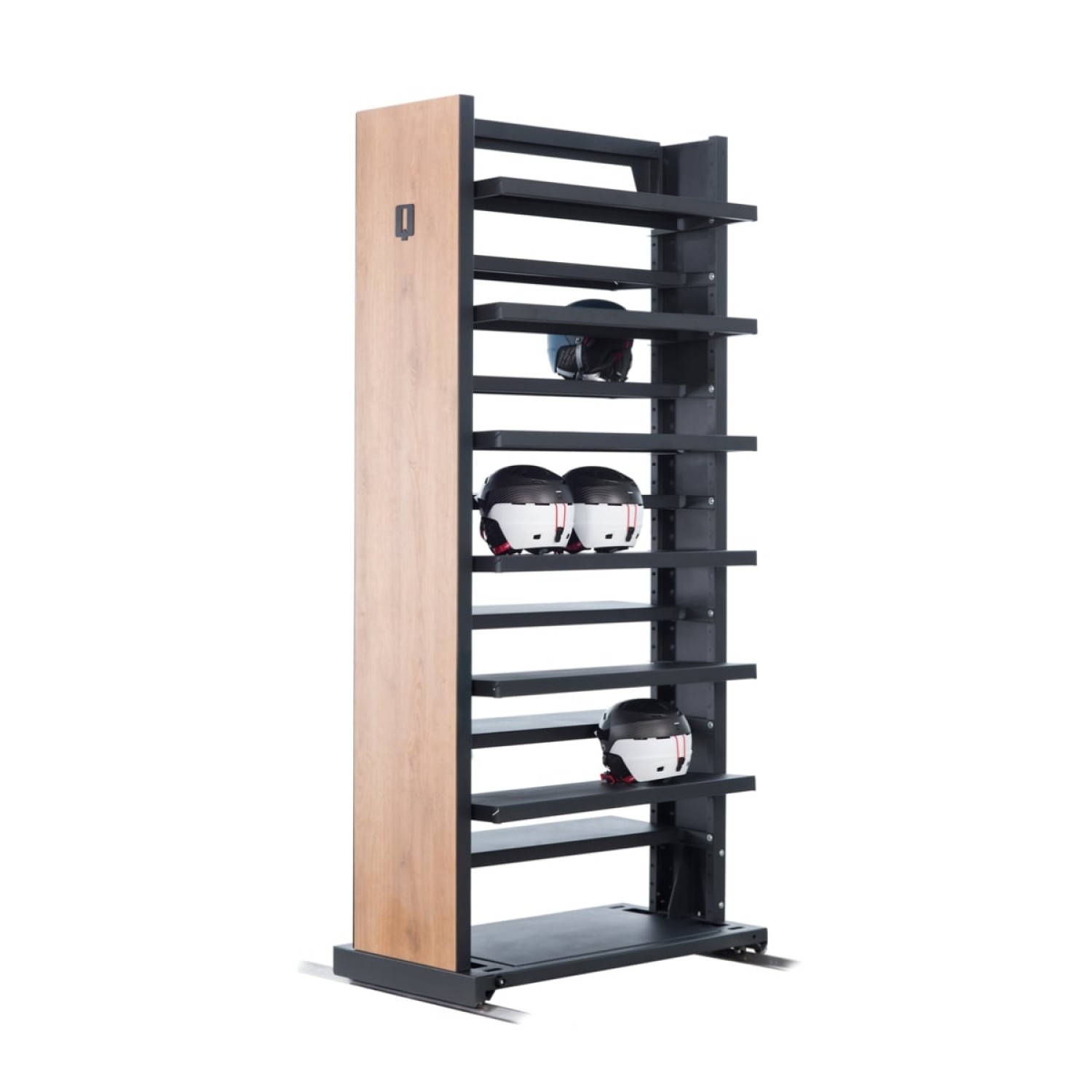

The construction of the Helmet Rack is simple, very durable and functional. It consists of a frame, columns and fifteen shelves made of 1.5mm thick galvanized steel. The stability of the rack is guaranteed by a set of angle brackets and by a reinforcing steel crossbar that links both columns on the top of the construction. The system of fixing shelves between columns allows them to be mounted on many different levels. As a result, the distance between shelves can be perfectly adjusted to the size of helmets. The shelves are located at 88° angle preventing the gear from falling out during movement.
QBL Catalogue Ski Rental & Service'24
SPECIFICATION_
| LENGTH MM | CAPACITY helmets |
| 1500 | 90 |
| 1800 | 105 |
| 2000 | 120 |
| 2400 | 150 |
| 3000 | 195 |
| 4000 | 240 |
| HEIGHT 2420 mm | WIDTH 500 mm |
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL

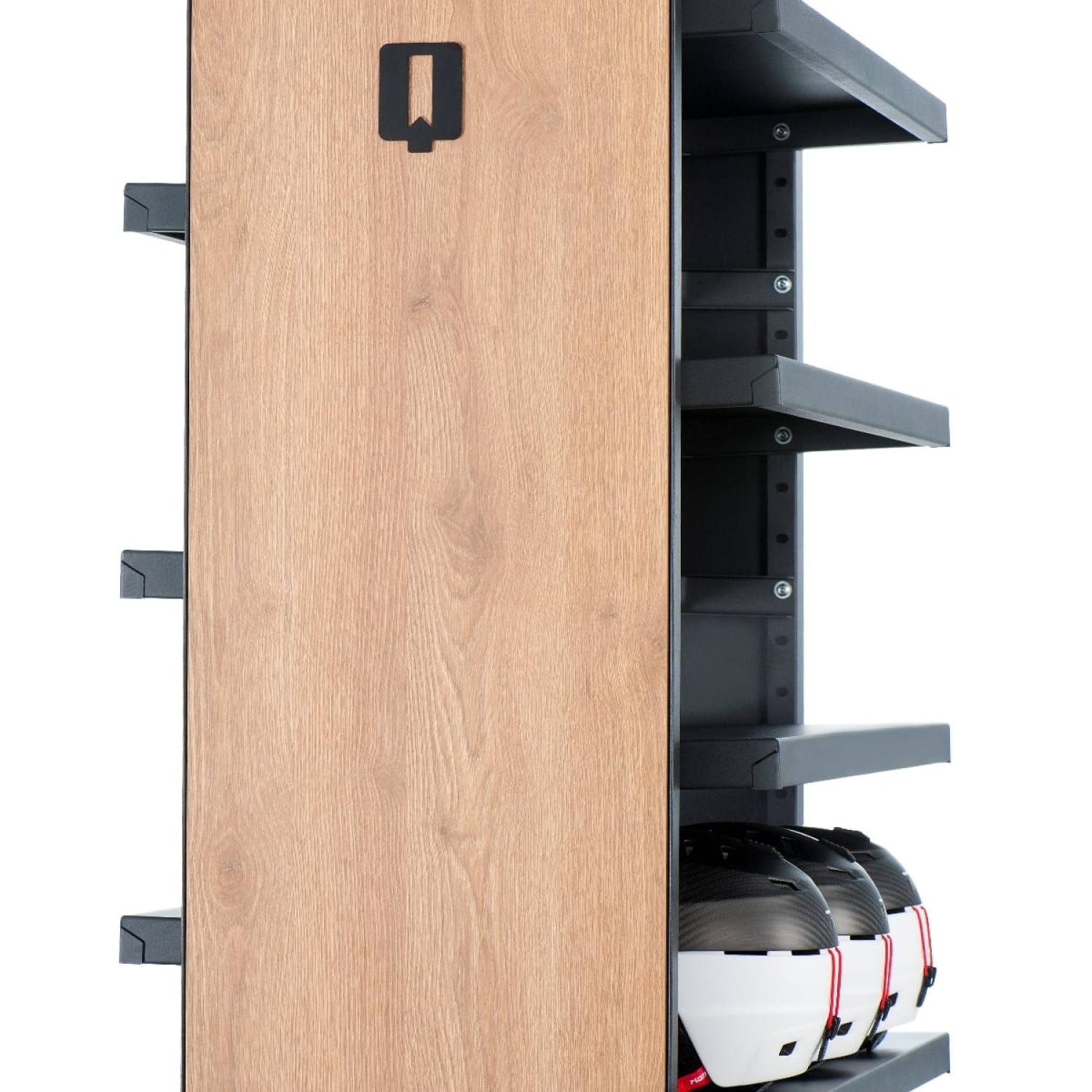

The main rack and dryer models are available in four different visual options which differ in the design of the front column. The Standard line is featured by a classic anthracite frontside, whilst the MiniPanel line by a modern white panel with a contrasting solid handle. The Panel line is distinguished by a wide, elegant board with an oval stainless-steel handle attached to it; the UniQ line offers unlimited possibilities for the selection of materials, which includes a delicate casing of a wide front column with a comfortable inner handle. The choice of different visual lines enables QBL products to be properly matched to the interior design and character of the facility in which they are used.
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
ERGONOMIC SHELVES
MORE STORAGE POSSIBILITIES

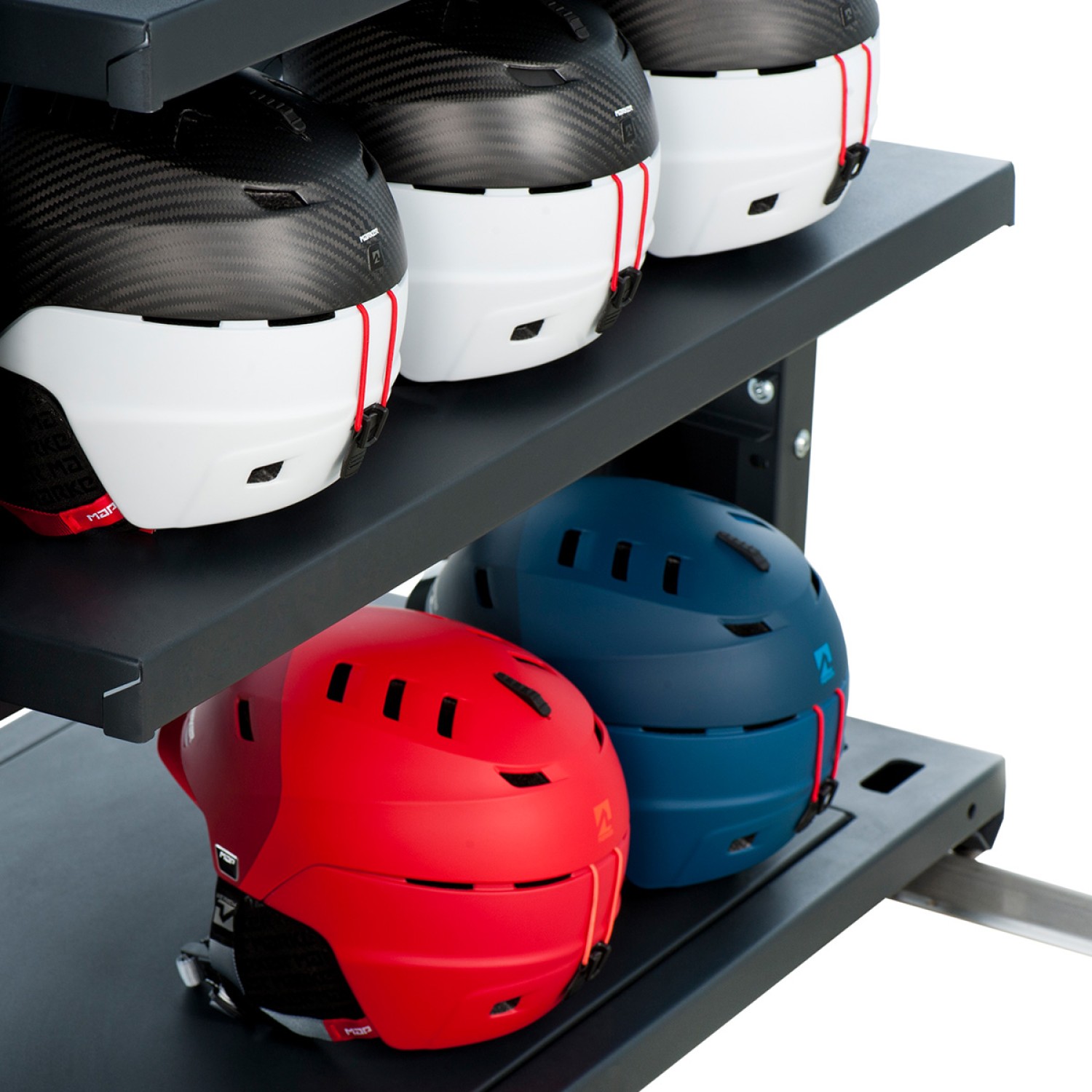

Shelves are the main component of some products, but they are also a very useful optional accessory for virtually every model of the rack. Thanks to their design and dimensions, they are perfect for storing helmets, boots and many other accessories. Additionally, the solution of mounting them at a slight angle reduces the risk of equipment falling out when the racks are dynamically moved or collided. With the adjustment systems in the racking columns, the mounting heights of the shelves and the spacing between them can be adapted to the size of the equipment stored. The edges of the shelves have been rounded off to avoid stripping the equipment and to prevent hand injuries when taking boots from the rack. The shelves are made of highquality 1.5mm galvanised steel and are powder-coated.
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
FRAME
RIGID STRUCTURE, SAFETY OF USE
All racks and dryers in the rail system are equipped with a structural frame made of 3mm-thick steel, which is their load-bearing base and ensures the rigidity and stability of the entire system. The frame also acts as a running structure, ensuring safe and even guidance of products on the rails. The frame is double protected against corrosion – it is made of galvanised steel and covered with a layer of powder coating.
TECHNOLOGIES_
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
ERGONOMIC SHELVES
MORE STORAGE POSSIBILITIES
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
FRAME
RIGID STRUCTURE, SAFETY OF USE
FRONT BOARD DECORS_
Cleaf
Sherwood
S070
CLEAF
SABLÈ
LR33
Cleaf
PEMBROKE
S120
Cleaf
Pembroke
S128
Cleaf
Sherwood
S072
cleaf
ENGADINA
S060
Cleaf
Tivoli
S143
Cleaf
SHERWOOD
S071
Cleaf
MILLENNIUM
U129
Cleaf
Sherwood
U129
Egger
White Fineline
H3195
Egger
Natural Wild Oak
H1318
Egger
Natural Pacific Walnut
H3700
egger
NATURAL HALIFAX OAK
H1180
Egger
Bramberg Pine
H1487
Egger
Cognac Brown Sherman Oak
H1344
Egger
Truffle Brown Denver Oak
H1399
Egger
Natural-Carini-Walnut
H3710
Egger
Pewter Halifax Oak
H3176
