Universal
Skis 100%
PRODUCT LINE_ Panel
PRODUCT DESCRIPTION_

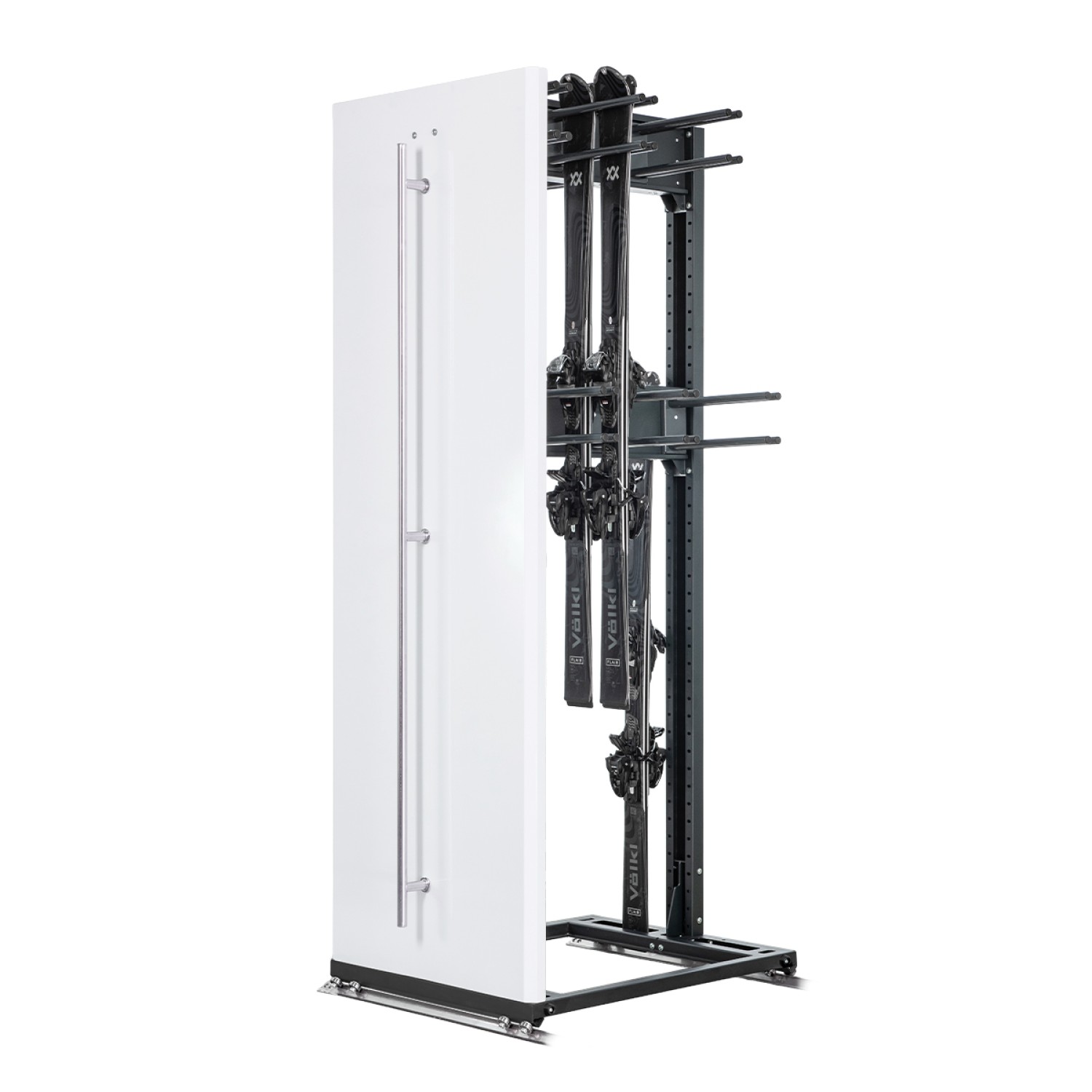

Universal rack is the most capacious of all the racks and is composed of such elements as a frame, columns, two horizontal levels and ski forks. Each fork is coated with a special anti-slip rubber paint and can accommodate up to three pairs of skis. Height-adjustable horizontal levels enable the storage of skis of different sizes. The ski forks can be attached to the levels in any configuration depending on the type of the stored gear.
QBL Catalogue Ski Rental & Service'24
SPECIFICATION_
| LENGTH MM | CAPACITY pairs of skis |
| 1500 | 60 |
| 1800 | 72 |
| 2000 | 84 |
| 2400 | 108 |
| 3000 | 132 |
| 4000 | 168 |
| HEIGHT 2420 mm | WIDTH 800 mm |
DOUBLE PROTECTION
DURABILITY & PROTECTION AGAINST CORROSION
The key elements of racks and dryers exposed to corrosion (such as frames, levels, angles or shelves, as well as depot lockers structures) are made of high-quality galvanised steel. During the final stage of production, all elements are subject to automated powder coating. Galvanised steel and a thick layer of coating provide double protection for the products against moisture. In addition, the rack structures have been designed to prevent water accumulation inside the
FOUR VISUAL LINES
DIVERSE DESIGN OF THE FRONT PANEL
The main rack and dryer models are available in four different visual options which differ in the design of the front column. The Standard line is featured by a classic anthracite frontside, whilst the MiniPanel line by a modern white panel with a contrasting solid handle. The Panel line is distinguished by a wide, elegant board with an oval stainless-steel handle attached to it; the UniQ line offers unlimited possibilities for the selection of materials, which includes a delicate casing of a wide front column with a comfortable inner handle. The choice of different visual lines enables QBL products to be properly matched to the interior design and character of the facility in which they are used.
ADJUSTMENT SYSTEMS
OPTIMAL USE OF AVAILABLE SPACE
QBL products are designed to allow, as much as possible, for the individual components to be adapter to the types and sizes of equipment they store. Thanks to smart functional solutions, adapting the location of the forks, adjusting the mounting height of the levels, shelves or aluminium crossbars is very simple and intuitive. Adjustment systems mean optimal use of the available space – which translates directly into increased storage capacity.
GRIP OF SKIS_ FORK SYSTEM
BY FAR THE MOST SPACEEFFICIENT HOLDING SYSTEM
The fork-based system is the most capacious way to store skis. The forks are made of 3mm-thick steel and four steel tubes to hang the skis on. The surface of the forks is covered with a rubber coat, which has anti-slip properties and effectively protects them from scratches. The forks are fixed at any distance on the steel levels – allowing maximum use of the available space on the rack. The structure has been designed in such a way that, thanks to the gentle slope of the steel tubes, the risk of equipment falling out during dynamic movement or collision of the racks is reduced. Each fork can safely store two to three pairs of senior skis.
RUNNING SYSTEM
SPACE SAVING, MOBILE & CONVENIENT
The running system of QBL products includes a rail set or a set of swivel casters. The rail set consists of stainless steel rails 2 or 3mm thick (depending on the length of the racks), connectors, rail endings, and 12 standard bearings attached to each frame of rack or dryer. The design of the rails and the number of bearings used guarantee smooth and safe movement of the products – even when fully loaded. The set of swivel casters includes four durable casters (with a diameter of 75, 80 or 125mm) which are selected according to the needs and the maximum possible load on the structure.
FRAME
RIGID STRUCTURE, SAFETY OF USE
All racks and dryers in the rail system are equipped with a structural frame made of 3mm-thick steel, which is their load-bearing base and ensures the rigidity and stability of the entire system. The frame also acts as a running structure, ensuring safe and even guidance of products on the rails. The frame is double protected against corrosion – it is made of galvanised steel and covered with a layer of powder coating.
WATER TUB
WATER COLLECTION – THE OMFORT OF A DRY FLOOR
Racks and dryers with an open interior of the frame can be optionally equipped with a steel tub with a rubber mat, which serves for collecting water and dirt dripping from stored skis, snowboards or dried boots. The tub is made of galvanised steel, thus maintaining its resistance to corrosion. Adjusting the structure to the frames of the racks and dryers allows for easy removal and emptying. The use of the tub reduces moisture and dirt on the floor and in the area of the rail system.
